Code: 689046

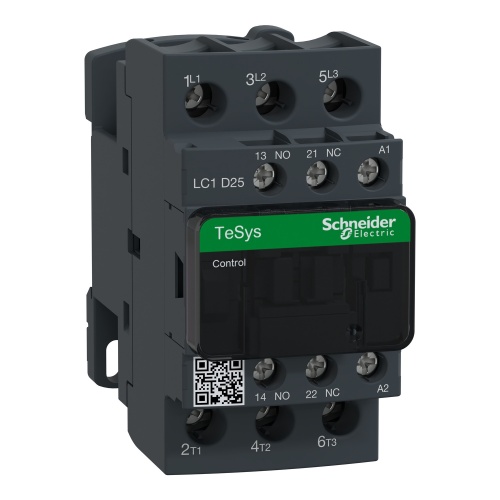

Schneider Electric LC1D25G7TQ - TeSys Deca Contactor - 25 Amp, 120 VAC
Normally In Stock
Schneider Electric LC1D25G7TQ - TeSys Deca Contactor - 25 Amp, 120 VAC
Condition: New
Usually ships Same Day or Next Day$212.94
Sale Price
$177.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric LC1D25G7TQ - IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, bulk
Specifications
Starter Coil Voltage
120 VAC
Manufacturer
Schneider Electric
Starter Amperage
25 Amp
Features
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3/3e (11kW@400V)
They can be used to create motor starters for almost any type of application
It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals
For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability
Compact (45mm width), DIN-rail mounting or screw fixing
Pack of 5 units
Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine)
When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA
When used with up to a 600VAC 60A Class J or CC fuse, this contactor can have a SCCR up to 100kA
Contactor is supplied with a 120 VAC 50/60 Hz coil
Contactor has one normally open and one normally closed auxiliary contact built-in as standard
The NC contact is mirror certified
Screw clamp terminals are used for load and auxiliary connections
An extensive line of accessories makes it easy to meet the requirements of most applications
The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep
It weighs 0.82 lbs
Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
