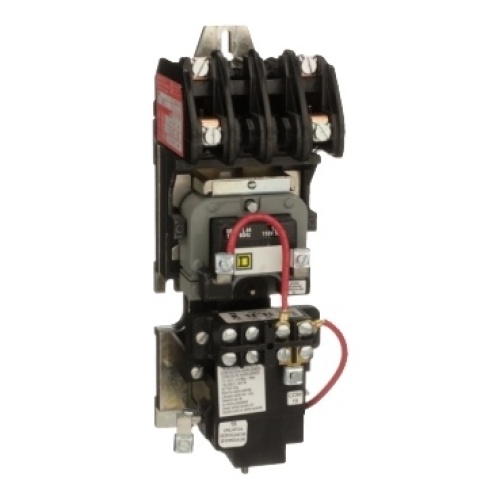

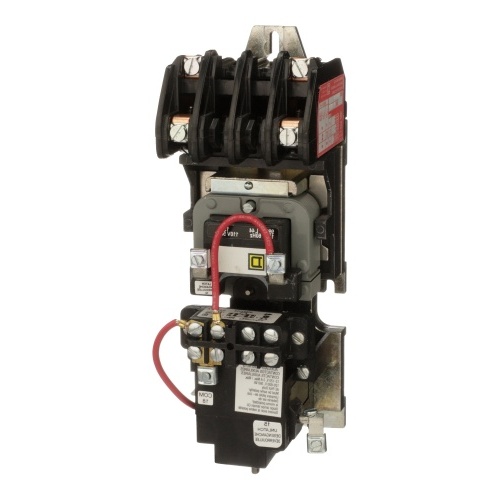

Schneider Electric 8903LXO20V04 - Type L/LX Lighting Contactor - 30 Amp, 277 VAC, 2P, Open
Normally In Stock
Code: 688696
Schneider Electric 8903LXO20V04 - Type L/LX Lighting Contactor - 30 Amp, 277 VAC, 2P, Open
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$680.77
Sale Price
$567.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric 8903LXO20V04 - Contactor, Type L, multipole lighting, mechanically held, 30A, 2 pole, 600 V, 277 VAC 60 Hz coil, open style
Specifications
Starter Enclosure Type
Open
Starter Coil Voltage
277 VAC
Manufacturer
Schneider Electric
Starter Poles
Two Pole
Starter Amperage
30 Amp
Features
30 Amp ballast lighting rating, 20 Amp tungsten lighting rating
Electrically and mechanically held
50-60 Hz rated
2 -12 pole versions
Field-convertible contacts with N.O. and N.C. indicators (8 N.C. contacts maximum)
Silver-Cadmium-Oxide double break contacts
Available as open type or with following enclosures
NEMA Type 1 General Purpose
EMA Type 1 Flush Mounting General Purpose with Plaster Adjustment
NEMA Type 3R Rainproof Enclosure
NEMA Type 4 & 4X Watertight Dust tight and Corrosion Resistant Glass-Polyester
NEMA Type 4 & 4X Watertight, Dust-tight Brushed Stainless Steel
NEMA Type 12 Dust-tight and Drip-tight for Industrial use
Power Poles
Kits provided to add 30A power poles conveniently to existing Type L contactors when additional circuits are required
Type L contactors are supplied with mounting bracket, so adder poles may be conveniently mounted from the front by a single captive screw
Adder poles supplied with standard N.O. contacts which are convertible to N.C. for flexibility
UL Listed and CSA certified to meet a variety of North American needs
