Schneider Electric VHU361NAWKGL Heavy Duty Safety Switch - 30 Amp, Three Pole, 600 VAC, 600 VDC
Normally In Stock
Code: 687640

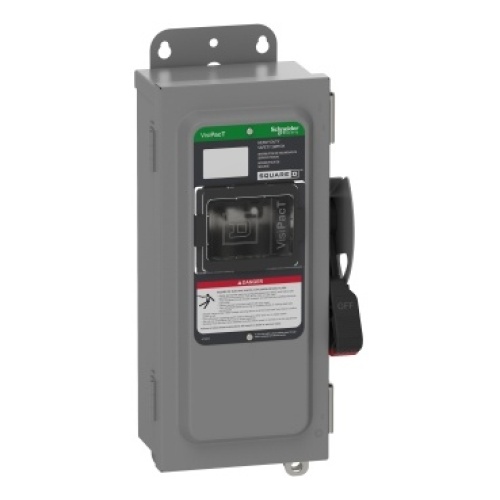

Schneider Electric VHU361NAWKGL - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 12, 600V, 30A, 3 pole, neutral installed, ground lugs
Condition: New
Usually ships Same Day or Next Day$1202.42
Sale Price
$1002.02
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric VHU361NAWKGL - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 12, 600V, 30A, 3 pole, neutral installed, ground lugs, 5 hp at 240 V AC 50/60 Hz for 1 phase motors,10 hp at 240 V AC 50/60 Hz for 3 phase motors,7.5 hp at 480 V AC 50/60 Hz for 1 phase motors,20 hp at 480 V AC 50/60 Hz for 3 phase motors,10 hp at 600 V AC 50/60 Hz for 1 phase motors,30 hp at 600 V AC 50/60 Hz for 3 phase motors,5 hp at 250 V DC,15 hp at 600 V DC
Specifications
Enclosure NEMA Rating
NEMA 12
Manufacturer
Schneider Electric
Component
Non-Fusible Disconnect Switch
Features
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions
They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs
All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle
This three blade non-fusible heavy duty safety switch that is rated at 30A with a voltage 600 VAC and 600 VDC
This short circuit rating for a non-fusible switches is based upon the Square D circuit breakers or Mag-Gard motor circuit protectors chosen as upstream protection,This switch is Type 12 rated with a galvannealed steel enclosure and comes with factory installed viewing window and are surface mounted
The safety switch has a 4-wire configuration with 3 poles and one solid neutral that is factory installed
The disconnect comes with factory installed equipment ground lugs
The wire range for this switch is AWG 12...AWG 6 aluminium and AWG 14...AWG 6 copper
All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.
