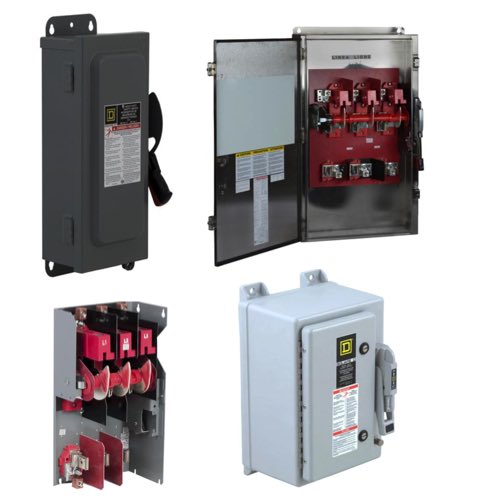

Schneider Electric Disconnects
Schneider Electric disconnects offer industrial, commercial, and residential users a reliable way to isolate electrical circuits in a variety of applications. With a robust construction, these switches provide superior performance in the long term, even when exposed to severe environments. The company offers an extensive range of disconnects, including both fusible and non-fusible types.
What makes these switches particularly appealing is the presence of a wide range of accessories and a long list of customization options. Auxiliary contacts and different enclosure types give us a clue to the presence of many innovative designs, while the physical size of these switches indicates high conductance, which equals to low resistance. The disconnects are completely in line with international standards and hence guarantee reliable and global performance.
Disconnects vs Circuit Protection
Disconnects
Disconnects are intended to remove and restore power from any electrical equipment that is downstream of that disconnect. In most cases, this is a manual operation and is actuated only when power needs to be removed or restored to a particular circuit. Disconnects do not typically provide any type of state monitoring ability nor do they offer any type of circuit protection, they are simply used to remove and restore power. It is common to see electrical disconnects used in situations where larger amounts of voltage are present. External disconnects function by allowing the operation of switching power to be performed outside of an electrical enclosure. It is also common to see disconnects require power to be shut off before the enclosure can be opened. This type of disconnect is found on circuits with high voltage potentials and allows for much safer operation when the electrical equipment inside the enclosure needs to be accessed.
Circuit Protection
Circuit protection devices, such as circuit breakers and fuses, function differently from disconnects in that they have the ability to disconnect power to any devices downstream from their location by monitoring current and power surge events. They are not designed to operate as a switch. When using fuses, if an overcurrent event or surge occurs, they will need to be replaced as they are only intended to be used once. Circuit breakers can be reset, but are not intended to switch power on and off as their main function. In many cases it is necessary to have both an electrical disconnect and a circuit protection device to ensure that any hardware on the circuit does not become damaged because of overcurrent or power surges.
