Code: 687627

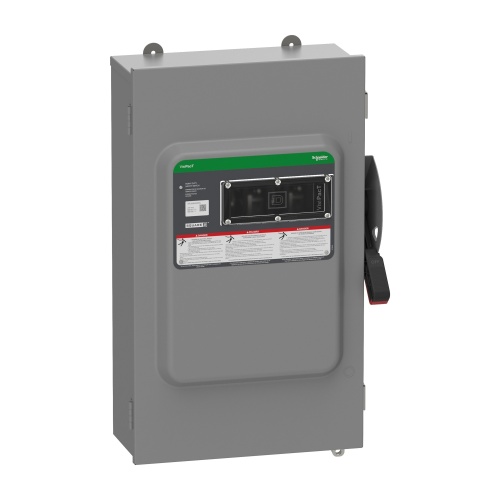

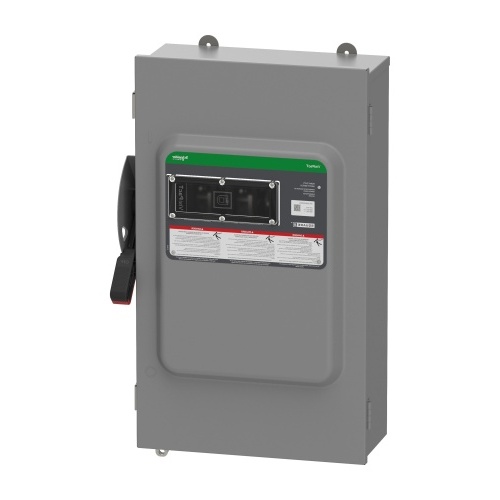

Schneider Electric VHU364NAWKGL Heavy Duty Safety Switch - 200 Amp, Three Pole, 600 VAC, 600 VDC
Normally In Stock
Schneider Electric VHU364NAWKGL - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 12, 600V, 200A, 3 pole, neutral installed, ground lugs
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$2563.04
Sale Price
$2135.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric VHU364NAWKGL - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 12, 600V, 200A, 3 pole, neutral installed, ground lugs, 15 hp at 240 V AC 50/60 Hz for 1 phase motors,60 hp at 240 V AC 50/60 Hz for 3 phase motors,50 hp at 480 V AC 50/60 Hz for 1 phase motors,125 hp at 480 V AC 50/60 Hz for 3 phase motors,50 hp at 600 V AC 50/60 Hz for 1 phase motors,150 hp at 600 V AC 50/60 Hz for 3 phase motors,40 hp at 250 V DC,50 hp at 600 V DC
Specifications
Voltage
240 VAC
Enclosure NEMA Rating
NEMA 12
Manufacturer
Schneider Electric
Component
Non-Fusible Disconnect Switch
Current
100 Amp
Voltage
250 VDC
Features
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions
They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs
All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle
This three blade non-fusible heavy duty safety switch that is rated at 100A with a voltage 600 VAC and 600 VDC
This short circuit rating for a non-fusible switches is based upon the Square D circuit breakers or Mag-Gard motor circuit protectors chosen as upstream protection,This switch is Type 12 rated with a galvannealed steel enclosure and comes with factory installed viewing window and are surface mounted
The safety switch has a 4-wire configuration with 3 poles and one solid neutral that is factory installed
The disconnect comes with factory installed equipment ground lugs
The wire range for this switch is AWG 6…250 kcmil aluminium and copper
All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.
