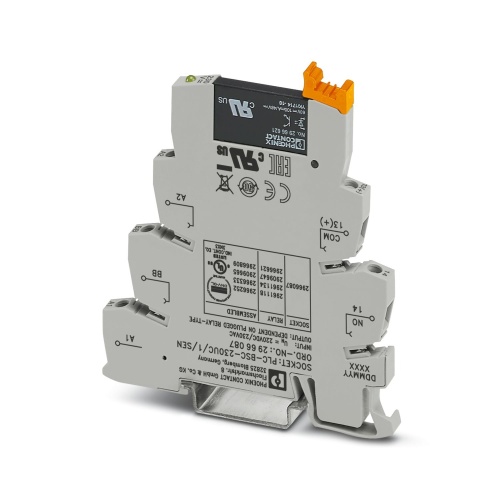

Phoenix Contact 2966809 Solid-state relay module PLC-OSC-230UC/ 48DC/100/SEN
Normally In Stock
Code: 68648
Phoenix 2966809 Solid-state relay module 230 VAC Screw connection Input Function,Output Function Relays
Condition: New
Usually ships Same Day or Next Day$37.06
Sale Price
$30.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2966809 A PLC interface for input functions features a PLC-BSC basic terminal block with screw connection and plug-in miniature solid-state relay. It is mounted on a DIN rail specifically designed for NS 35/7.5 profile, accommodating a single N/O contact, allowing for input signals that can be sourced from either AC or DC power sources at 230V or 220V respectively, with an adjustable output voltage range of 3-48V and a maximum current draw of 100mA.
Specifications
Relay Mounting
Din Rail
Relay Connection Type
Screw Connection
Component
Relay Module-Solid State
Manufacturer
Phoenix Contact
Relay Input Amperage
3 Mamp
Relay Application
Input Function Output Function
Relay Load Voltage DC Rating
3 Volt - 48 Volt
Coil Voltage Rating
220-277 Volt
Features
Relay modules with safe isolation according to DIN EN 50178 between coil and contact
Time savings of up to 60 %
No need for additional modular terminal blocks
Efficient connection to system cabling using V8 adapter
Space savings of up to 80 %
Functional plug-in bridges
Sensor connected directly to relay module
Downloads
Phoenix 2966809 Application Note English.pdfPhoenix 2966809 CAD data International.dxfPhoenix 2966809 CAD data International.pdfPhoenix 2966809 CAD data International.stpPhoenix 2966809 Data Sheet English.pdfPhoenix 2966809 Manufacturers declaration English.pdfPhoenix 2966809 Manufacturers declaration International.pdfPhoenix 2966809 Package Slip International.pdfPhoenix 2966809 Product Information English.pdfPhoenix 2966809 Tender Text English.zipPhoenix 2966809 Various International.pdf
