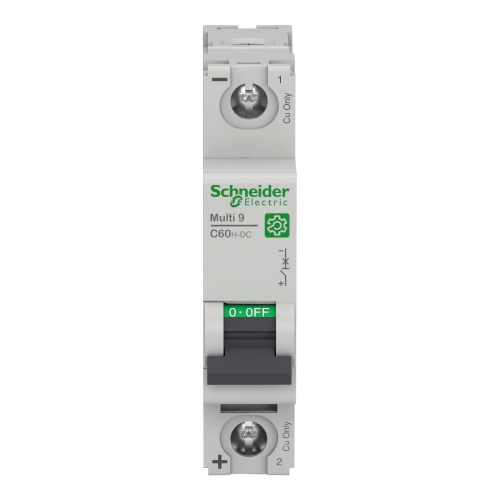

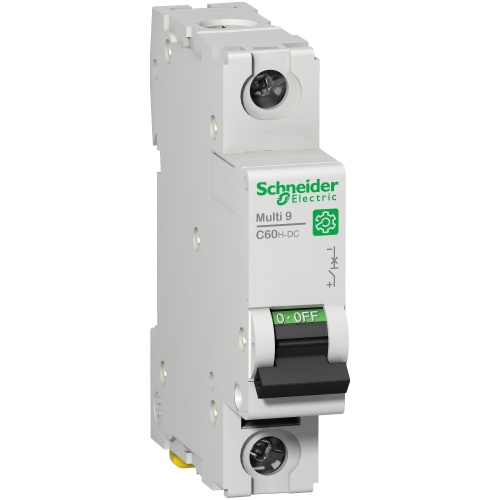

Schneider Electric M9U21132 - Multi9 C60H-DC Miniature circuit-breaker, 32 Amp, Single Pole, 7.5 kA, 250 VDC,110 VDC,220 VDC
Normally In Stock
Code: 685970
Schneider Electric M9U21132 - Multi9 C60H-DC Miniature circuit-breaker, 32 Amp, Single Pole, 7.5 kA, 250 VDC,110 VDC,220 VDC
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$275.89
Sale Price
$229.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric M9U21132 - Miniature circuit breaker (MCB), Multi9 C60H-DC, 1P, 32A, C curve, 5kA (UL 1077), 6kA (IEC/EN 60947-2)
Specifications
Breaker Amperage Rating
32 Amp
Breaker Number of Poles
Single Pole
Breaker Voltage Rating
250 VDC
Component
Miniature Circuit Breaker
Manufacturer
Schneider Electric
Manufacturer
Square D
Breaker Voltage Rating
110 VDC
Breaker Voltage Rating
220 VDC
Features
This Multi9 C60H-DC is a low voltage miniature circuit breaker (MCB) dedicated to direct current
It is a 1P circuit breaker with 1 protected pole, 32A rated current and C tripping curve
The rated short circuit breaking capacity goes up to 10kA at 220VDC conforming to EN/IEC 60947-2 standard and 10kA at 220VDC conforming to EN/IEC 60947-2 standard
This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2
It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats
This product protects from short circuit, earth leakage and overload
This product is dedicated for original equipment manufacturers (OEM) and control panel builders
It has an electrical endurance going up to 3000 cycles and a mechanical endurance going up to 20000 cycles
The Ue operational voltage is 250VDC
The Ui rated insulation voltage is 500VDC
The Uimp rated impulse withstand voltage is 6kV
The product can be clipped on a DIN rail
Its width is 2 pitches of 9mm
Pollution degree is 3
The product colour is light grey (RAL7035)
The dimensions are (W) 18mm x (H) 81mm x (D) 73mm
The weight is 0.128kg
It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals
The operating temperature is -25°C to 70°C
The storage temperature is -40°C to 85°C.
