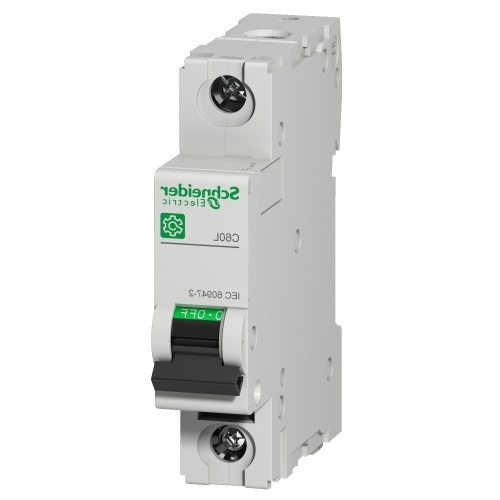

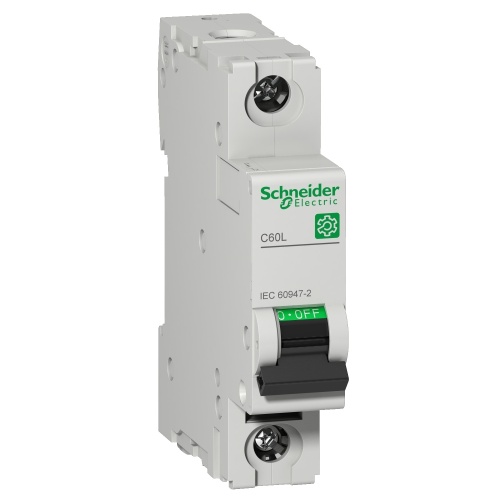

Schneider Electric M9F17104 - Multi9 C60 Miniature circuit-breaker, 4 Amp, Single Pole, 1.5 kA, 240 VAC,415 VAC,72 VDC
Normally In Stock
Code: 685962
Schneider Electric M9F17104 - Multi9 C60 Miniature circuit-breaker, 4 Amp, Single Pole, 1.5 kA, 240 VAC,415 VAC,72 VDC
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$279.13
Sale Price
$232.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric M9F17104 - Miniature circuit breaker (MCB), Multi9 C60L, 1P, 4A, C curve, 25kA (IEC/EN 60947-2)
Specifications
Breaker Amperage Rating
4 Amp
Breaker Number of Poles
Single Pole
Breaker Voltage Rating
240 VAC
Breaker Voltage Rating
415 VAC
Breaker Voltage Rating
72 VDC
Component
Miniature Circuit Breaker
Manufacturer
Schneider Electric
Manufacturer
Square D
Features
This Multi9 C60L is a low voltage miniature circuit breaker (MCB)
It is a 1P circuit breaker with 1 protected pole, 4A rated current and C tripping curve
The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard
This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2
It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats
This product protects from short circuit, earth leakage and overload
Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life
This product is dedicated for original equipment manufacturers (OEM) and control panel builders
It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles
The Ue operational voltage is 240VAC
The Ui rated insulation voltage is 500VAC
The Uimp rated impulse withstand voltage is 6kV
The operating frequency is 50Hz or 60Hz
The product can be clipped on a DIN rail
Its width is 2 pitches of 9mm
Pollution degree is 3
Overvoltage category is IV
The product colour is light grey (RAL7035)
The dimensions are (W) 18mm x (H) 81mm x (D) 72mm
The weight is 0.12kg
It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals
The operating temperature is -30°C to 70°C
The storage temperature is -40°C to 80°C.
