Code: 685311

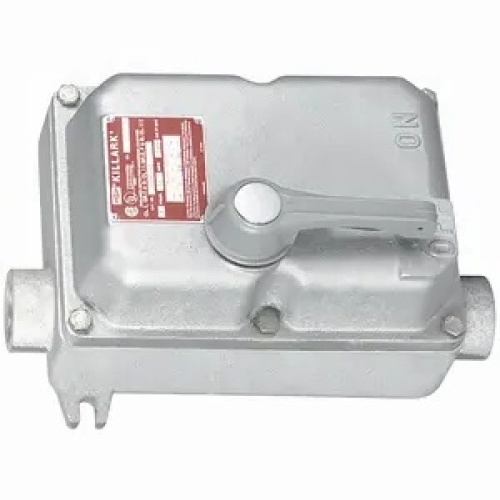

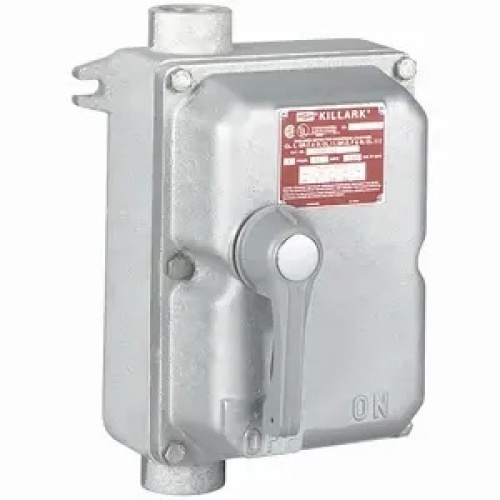

Killark XEDS-100 - Non-Fusible Disconnect Switch, 100 Amp, Three Pole
Normally In Stock
Killark XEDS-100 - XEDS Series, 100 Amp Max, Non-Fused Disconnect Switch
Condition: New
Usually ships Same Day or Next Day$9889.88
Sale Price
$8241.57
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Killark XEDS-100 - External handle is vault type with standard provisions for locking in "OFF" position with up to three padlocks.Provisions for locking in "ON" position available as factory modification (add suffix SU40 to catalog number).Enclosure and external handle is cast copper-free aluminum alloy (less than 4/10 of 1%).Cover bolts are stainless steel.Eaton (Cutler Hammer) Type DS Switches.Two cast conduit hubs, one top and one bottom.Internal disconnect handle mechanism is a sliding plate mounted to the cover. Suitable for indoor applications.
Specifications
Poles
Three Pole
Component
Non-Fusible Disconnect Switch
Current
100 Amp
Manufacturer
Killark
Features
External handle is vault type with standard provisions for locking in "OFF" position with up to three padlocks.
Provisions for locking in "ON" position available as factory modification (add suffix SU40 to catalog number).
Enclosure and external handle is cast copper-free aluminum alloy (less than 4/10 of 1%).
Cover bolts are stainless steel.
Eaton (Cutler Hammer) Type DS Switches.
Two cast conduit hubs, one top and one bottom.
