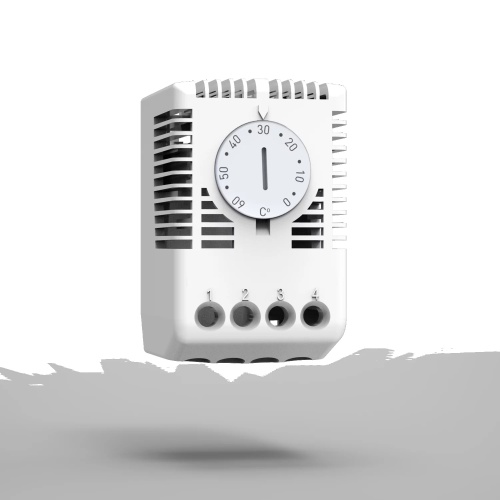

nVent Hoffman ETR200 - Thermostat
Normally In Stock
Code: 683928
nVent Hoffman ETR200 - Thermostat
Condition: New
Usually ships Same Day or Next Day$161.36
Sale Price
$134.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman ETR200 - Thermostat
Specifications
Component
Thermostat
Manufacturer
Hoffman
Features
Description: Thermostat with changeover contact to manage any kind of device, heater or cooling. Sensor element thermostatic bimetal. Mounting clip for 35 mm DIN rail (EN 60715).
Material: Plastic according to UL94 V-0.
Setting range: 0 °C to +60 °C. Switching temperature difference less than 3 °K, and switching point tolerance ¬±3 °K.
Operating temperature: -40 °C to +80 °C.
Service life: > 100,000 cycles.
Connection: Screw terminal for cable (0.5 to 2.5 mm²).
Protection: IP 20.
Approvals: CE, EAC, cULus_UL Listed.
Finish: RAL 7035.
Pack quantity: 1 piece.
Setting range: 0 °C to +60 °C
switching temperature difference less than 3 °K, and switching point tolerance ¬±3 °K
Switch capacity: NC contact, 100-250 V AC, 10(2) A. NO contact, 100-250 V AC, 5(2) A, for 230 V AC operation only
24 V DC, 30 W
value in brackets for inductive load
Operating temperature: -40 °C to +80 °C
Service life: > 100,000 cycles
