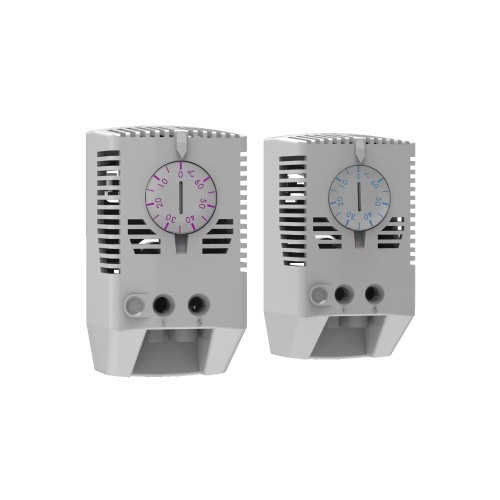

nVent Hoffman ETR202 Thermostat - Plastic
Normally In Stock
Code: 683926
nVent Hoffman ETR202 Thermostat - Plastic
Condition: New
Usually ships Same Day or Next Day$128.83
Sale Price
$107.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman ETR202 Thermostat
Specifications
Component
Thermostat
Manufacturer
Hoffman
Features
Description: Thermostat with NC/NO contacts to manage temperature in panels. ETR202 with a normally closed contact for regulating heaters. ETR201 with a normally open contact for regulating cooling devices or signal devices. Sensor element thermostatic bimetal. Mounting clip for 35 mm DIN rail (EN 60715).
Material: Plastic according to UL94 V-0.
Setting range: 0 °C to +60 °C. Switching temperature difference less than 7 °K, and switching point tolerance ¬±4 °K.
Operating temperature: -20 °C to +80 °C.
Service life: > 100,000 cycles.
Connection: Screw terminal for cable (0.5 to 2.5 mm²).
Protection: IP 20.
Approvals: CE, EAC, cULus_UL Listed.
Finish: RAL 7035.
Pack quantity: 1 piece.
Switch capacity: 240 V AC, 10(2) A. 120 V AC, 15(2) A. 24 V DC, 30 W
value in brackets for inductive load
Operating temperature: -20 °C to +80 °C
Service life: > 100,000 cycles
Connection: Screw terminal for cable (0.5 to 2.5 mm²)
