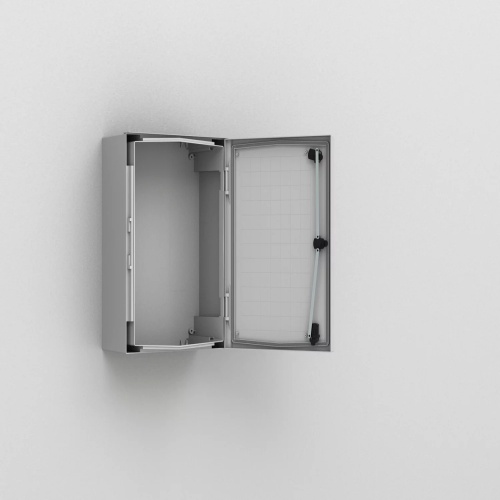

nVent Hoffman UCP1080 - Wall mounted, 1035x835x300, Compact enclosure
Normally In Stock
Code: 682871
nVent Hoffman UCP1080 - Wall mounted, 1035x835x300, Compact enclosure
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$3665.82
Sale Price
$3054.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman UCP1080 1035X835X300 Enclosure
Specifications
Enclosure Composition
Polyester
Component
Non-Metallic Enclosure
Enclosure Height
2.1"
Enclosure Width
2.2"
Enclosure Depth
1.4"
Manufacturer
Hoffman
Features
Material: Fibre-glass reinforced polyester. UCPT viewing area: polycarbonate.
Body: Monoblock moulded 3 mm thick. Four holes for direct wall fixing. Without gland plate openings.
Door: Door, with or without window and 180 ° opening. For UCP/UCPT750 and above, a door support is supplied for easier closing. Sealing is by an injected one piece polyurethane gasket.
Lock: Double-bit 3 mm insert and 90 ° movement. UCP/UCPT540 and above have three locking points. Other locks are available as an accessory.
Characteristics: Self extinguishing and halogen free. Double insulated, according to EN61439-1. Rated insulation voltage Ui = 1000 V ac and 1500 V dc.
Protection: IP 66, TYPE 4, 4X, 12, 13 and IP 65 only for UCPT430. Impact resistance IK 08 (IK 07 for enclosures with transparent door).
Approvals: CE, GOST. CSA and cULus_UL Listed approvals apply to plain door enclosures only. For further approvals, please contact nVent HOFFMAN's sales department.
Finish: RAL 7035, precoloured raw material.
Delivery: Enclosure with door, fixing screws for the mounting plate and a self adhesive rain strip.
Note: UCP320, UCP430 and UCP540 are delivered with the doors inside the packaging, unmounted.
