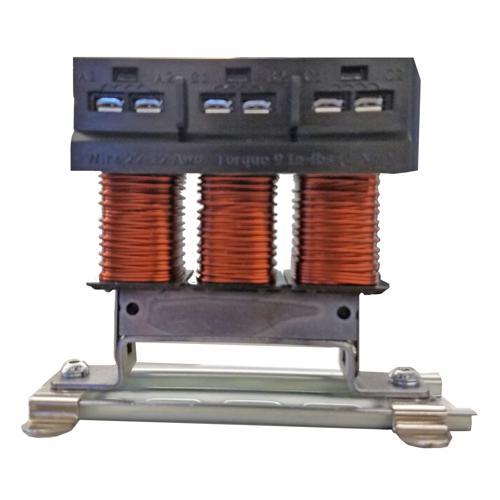

TCI KDRMA42H1DR KDR, 600V, 1/3 HP, 0.70 Motor Amps, 0.75 Max Amps, 3 Phase, Open, Line Inductor, 5% Impedance, UL Listed, With Din Rail Clips
Normally In Stock
Code: 68204
TCI KDRMA42H1DR KDR, 600V, 1/3 HP, 0.70 Motor Amps, 0.75 Max Amps, 3 Phase, Open, Line Inductor, 5% Impedance, UL Listed, With Din Rail Clips - 3.8" x 4.56" x 1.78" (HxWxD)
Condition: New
Usually Ships within 2-4 weeks$139.00
Sale Price
$115.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TCI KDRMA42H1DR KDR, 600V, 1/3 HP, 0.70 Motor Amps, 0.75 Max Amps, 3 Phase, Open, Line Inductor, 5% Impedance, UL Listed, With Din Rail Clips
Specifications
VFD Filter Enclosure
Open
VFD Filter Voltage
600 Volt
VFD Filter Impedance
5%
VFD Filter Line
(KDR) Reactor
VFD Filter Protected Side
Line Side (In)
Manufacturer
TCI
VFD Filter Horsepower
0.33 HP
VFD Filter Voltage Phase
Three Phase
VFD Filter Motor Amps
0.7 Motor Amp
Features
Impedance Protection: Low “Z” and High “Z”
System Voltage: 208/240 VAC, 480 VAC, 575/600 VAC, 690 VAC
Ambient Temperature: 50° C (122° F) – Open
40° C (104° F) – Enclosed
Altitude (Maximum): 2,000 meters (6,000 feet) – Derating necessary above 2,000 meters
Fundamental Frequency: 50/60 Hz
Short Term Overload Rating: Tolerate 200% rated I for a maximum of 3 minutes
Agency Approvals: cULus Listed, CE Marked
Inductance Characteristics: Minimum 95% L at 110% Load
Minimum 80% L at 150% Load
Input and Output: Available for either the line or load side of a VFD
