Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

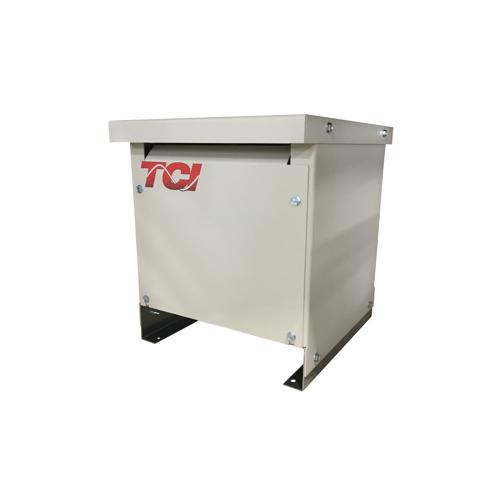

TCI KDRAA58L2E3R1 (KDR) Reactor 575 Volt 3 Phase 7.6 Amp 5 HP
Normally In Stock
Code: 67799
TCI KLR8DQDV (KLR) Line Reactor 575 Volt-3% Impedance - 11.45" x 18" x 12" (HxWxD)
Condition: New
Usually Ships within 2-4 weeks$625.00
Sale Price
$520.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
KDR line/Load reactors Output (1.5%), Low-Z (3% impedance), High -Z (5% impedance) UL listed available in Open, Type 1, Type 3R Lug kits available DIN Rail options available.
Specifications
VFD Filter Horsepower
5 HP
VFD Filter Includes Heater
No Heater
VFD Filter Impedance
3%
VFD Filter Line
(KDR) Reactor
VFD Filter Voltage
575 Volt
VFD Filter Protected Side
Line Side (In)
VFD Filter Protected Side
Load Side (Out)
Manufacturer
TCI
VFD Filter Voltage Phase
Three Phase
VFD Filter Motor Amps
6.1 Motor Amp
VFD Filter Enclosure
UL Type 3R
Features
Impedance Protection: Low “Z” and High “Z”
System Voltage: 208/240 VAC, 480 VAC, 575/600 VAC, 690 VAC
Ambient Temperature: 50° C (122° F) – Open
40° C (104° F) – Enclosed
Altitude (Maximum): 2,000 meters (6,000 feet) – Derating necessary above 2,000 meters
Fundamental Frequency: 50/60 Hz
Short Term Overload Rating: Tolerate 200% rated I for a maximum of 3 minutes
Agency Approvals: cULus Listed, CE Marked
Inductance Characteristics: Minimum 95% L at 110% Load
Minimum 80% L at 150% Load
Input and Output: Available for either the line or load side of a VFD
