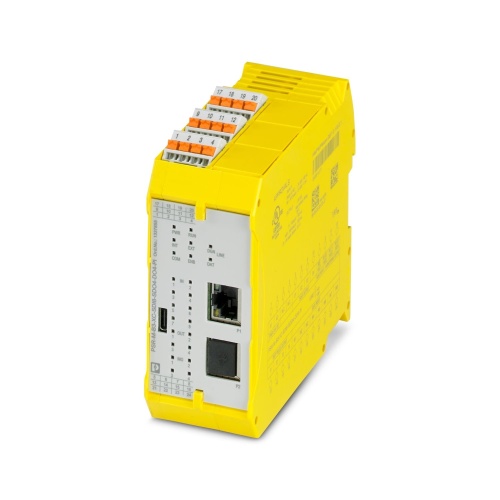

Phoenix Contact 1337855 Safety module PSR-M-B3-XC-SDI8-SDO4-DO4-PI
Normally In Stock
Code: 676723
Phoenix Contact PSR-M-B3-XC-SDI8-SDO4-DO4-PI - Safety module - 1337855
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$996.10
Sale Price
$830.08
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1337855 The configurable safety module comes with a base configuration that includes 8 SDI and 4 SDO outputs, as well as 4 DI and 4 MO inputs. It can be expanded to SIL 3 category 4/PL e level via TBUS connectivity, featuring a plug-in push-in terminal block but without a TBUS connector, while also integrating gateway functionality for extreme operating conditions.
Specifications
Component
Safety Relay
Manufacturer
Phoenix Contact
Features
Cost-effective safety solution with a high level of adaptability to individual requirements
Fast startup, thanks to easy hardware and software configuration
Machine downtimes minimized with comprehensive, easy-to-understand diagnostics
Flexible extension with safe inputs and outputs
Possibility of connecting fieldbus gateways for bidirectional communication between the base module and the higher-level controller
Tool-free and time-saving installation thanks to Push-in technology
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
Suitable for elevator applications in accordance with EN 81-20
Corrosion protection through protective coating on the PCB
Integrated gateway functionality for PROFINET, EtherCAT®, EtherNet/IP™, Modbus/TCP
Suitable for ATEX Zone 2 or Class I Zone 2
