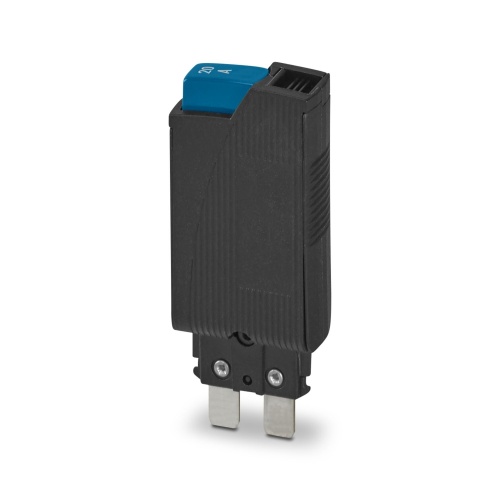

Phoenix Contact 1324401 Thermal device circuit breaker TCP 10/20A
Normally In Stock
Code: 676714
Phoenix Contact TCP 10/20A - Thermal device circuit breaker, 250 VAC - 1324401
Condition: New
Usually ships Same Day or Next Day$23.74
Sale Price
$19.78
MUST BUY IN PACKS OF 18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1324401 A one-channel thermal device circuit breaker is designed to safeguard against overloads at a voltage of 250V AC or 72V DC, effectively protecting loads in case of an overload condition. Suitable for installation on fuse terminal blocks and compatible with flat plug-in fuses of type C, as specified by the ISO 8820-3 standard, this device features a fixed nominal current rating of 20A.
Specifications
Breaker Voltage Rating
250 VAC
Manufacturer
Phoenix Contact
Component
Thermal Device Circuit Breaker
Features
Fast, replacement part-free recommissioning after an event with the reconnection options
Easy to retrofit in existing systems with vehicle flat-type fuses with identical pin connector pattern
System disconnection for maintenance actions via the integrated device switch
