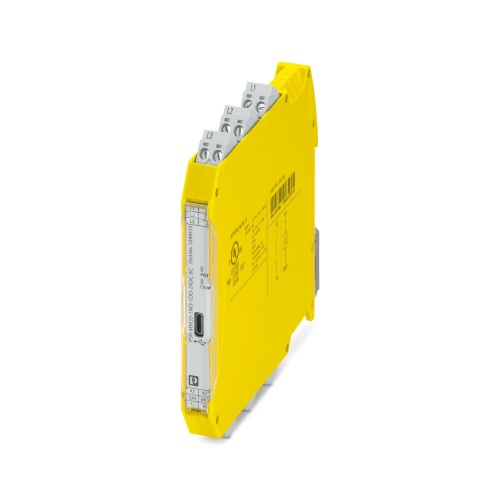

Phoenix Contact 1249515 Safety relay module PSR-MM35-1NO-1DO-24DC-SC
Normally In Stock
Code: 676708
Phoenix Contact PSR-MM35-1NO-1DO-24DC-SC - Safety relay module - 1249515
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$1023.67
Sale Price
$853.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1249515 A safety relay module is designed for monitoring speed and speed range without relying on sensor inputs, meeting SIL 3, Cat. 4, PL e standards and capable of evaluating the rotating field of AC and three-phase motors through a 2-channel assessment process, featuring a plug-in screw terminal block with a width of 12.5mm.
Specifications
Component
Safety Relay
Manufacturer
Phoenix Contact
Features
Safe motion monitoring based on sensor-free rotating field measurement of the drive
Maximum system availability, robust measuring procedure in the face of interference factors such as shock, vibration, and EMI
Integrated safety functions: SLS (Safe Limited Speed), SSM (Safe Speed Monitor), SSR (Safe Speed Range)
Easy parameterization and online monitoring with the PSRmotion software, which can be downloaded free of charge
1 enabling current path, 1 parameterizable digital signal output
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061
