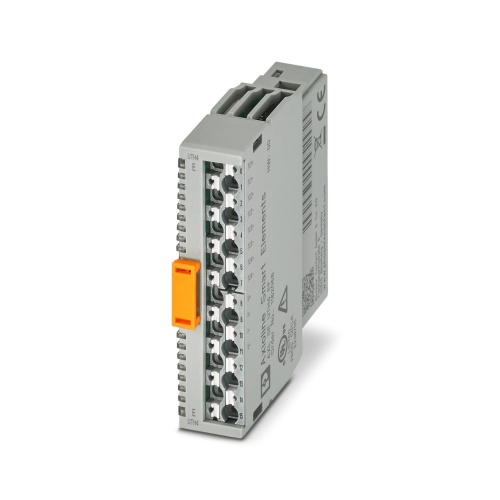

Phoenix Contact 1182068 Temperature module AXL SE UTH4 EF
Normally In Stock
Code: 674684
Phoenix Contact AXL SE UTH4 EF - Axioline Smart Elements Temperature module - 1182068
Condition: New
Usually ships Same Day or Next Day $250.78
Sale Price
$208.98
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1182068 The Axioline Smart Elements device features a temperature recording module with analog inputs for thermocouples or linear voltage, utilizing 2-conductor shielded twisted pair connections. It also includes an external cold junction that can be used as a separate Pt 100 sensor input, and is protected by an IP20 rating.
Specifications
Manufacturer
Phoenix Contact
Component
I/O Component
PLC & IO Connection Method
Push-In
Features

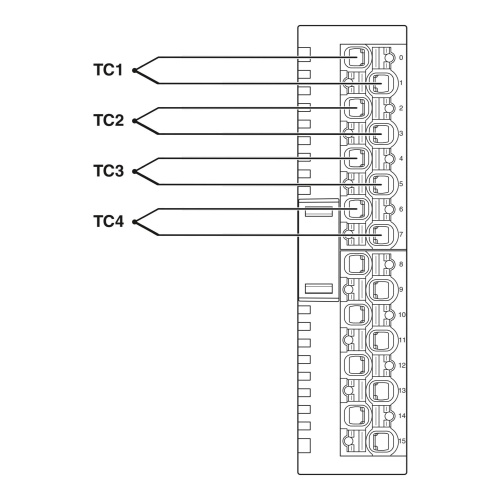

4 analog input channels to connect thermocouples or linear voltages from -100 mV to +100 mV

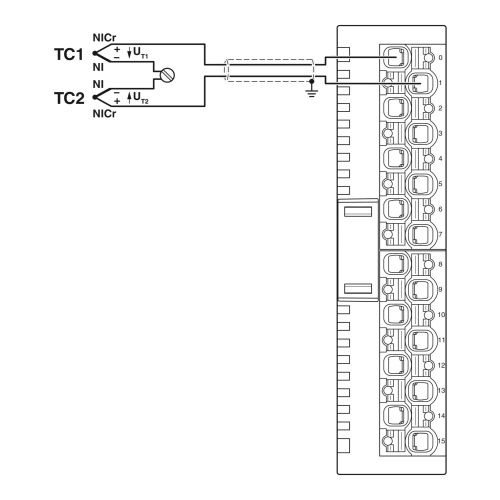

Connection of sensors in 2-conductor technology

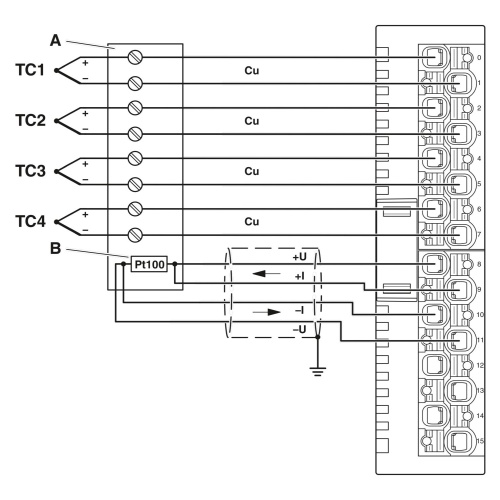

A Pt 100 sensor with 4-conductor technology can be connected as an external cold junction sensor or additional RTD measuring channel
Internal detection and compensation of cold junction temperature (can be parameterized)
Device rating plate stored
