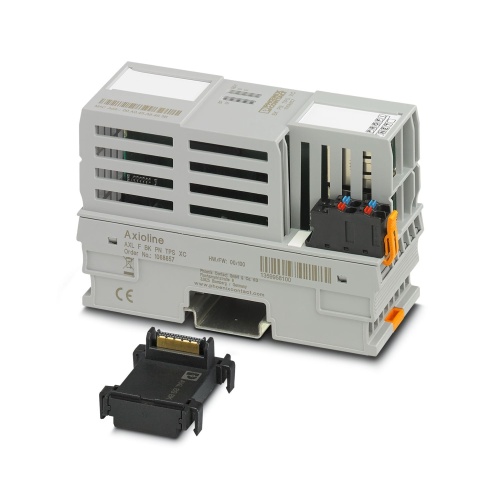

Phoenix Contact 1068857 Bus coupler AXL F BK PN TPS XC
Normally In Stock
Code: 674671
Phoenix Contact AXL F BK PN TPS XC - Axioline F Bus coupler - 1068857
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$806.03
Sale Price
$671.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1068857 The Axioline F is a bus coupler that operates within the PROFINET protocol, utilizing an RJ45 jack for connectivity. It operates at a local transmission speed of 100 Mbps under extreme conditions, offering protection up to IP20, and comes with a bus base module and Axioline F connector as part of its specifications.
Specifications
Manufacturer
Phoenix Contact
Component
I/O Component
PLC & IO Connection Method
Push-In
Features
2 Ethernet ports (with integrated switch)
Conformance with PROFINET specification V2.3
Supports PROFIsafe
Supports PROFIenergy
Supports PROFINET S2 system redundancy (firmware version 1.30 or later)
PROFINET RT and IRT
Minimum cycle time of PROFINET for RT and IRT is 250 μs
Firmware can be updated
Runtime in bus coupler is negligible (almost 0 µs)
Typical cycle time of the Axioline F local bus is around 10 μs
Web-based management
Supports the operation of Axioline Smart Elements
Supports passive Smart Elements (firmware version 1.30 or later)
Supports IOL-CONF (firmware version 1.30 and later)
Supports Diag+
Safe analog value processing with SAFE AI and other components
Can be used under extreme ambient conditions
Extended temperature range of -40 °C ... +70 °C (see “Tested successfully: use under extreme ambient conditions” in the data sheet)
Partially coated PCBs
