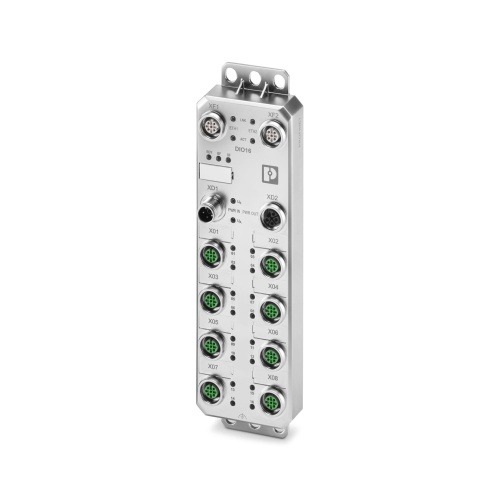

Phoenix Contact 1300915 Digital module AXL E PN DIO16 M12 6M-L
Normally In Stock
Code: 674668
Phoenix Contact AXL E PN DIO16 M12 6M-L - Axioline E Digital module - 1300915
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$435.00
Sale Price
$362.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1300915 The Axioline E is a digital I/O device that features PROFINET connectivity and an M12 connector with D-coded functionality. It boasts 16 digital inputs capable of operating at 24V DC, and its connection technology utilizes 4-conductor cabling for this purpose. Similarly, the device has 16 digital outputs also rated for 24V DC, although only 500 mA is supported, utilizing a 3-conductor connection method. The device's degree of protection ranges from IP65 to IP67 or IP69, indicating its resistance to various environmental conditions and durability in harsh settings.
Specifications
Manufacturer
Phoenix Contact
Component
I/O Component
PLC & IO Connection Method
M12
Features
Connection with M12 connectors with push-pull fast connection or screw connection
Mapping in accordance with PROFINET specification V2.4 as PROFINET device (Conformance Class C (IRT switch))
PROFINET Fast Startup function supported
PROFINET system redundancy S2 supported
PROFINET supported with min. cycle time of 1 ms
2 Ethernet ports (with integrated switch)
Transmission speed of 100 Mbps
Short-circuit and overload protection
IP65/IP67/IP69 degree of protection
