Phoenix Contact 1300834 Digital module AXL E PN DI16 M12 6M-L
Normally In Stock
Code: 674667
Phoenix Contact AXL E PN DI16 M12 6M-L - Axioline E Digital module - 1300834
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$404.29
Sale Price
$336.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

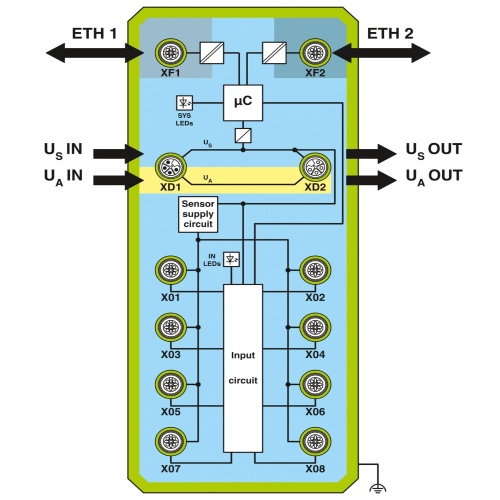

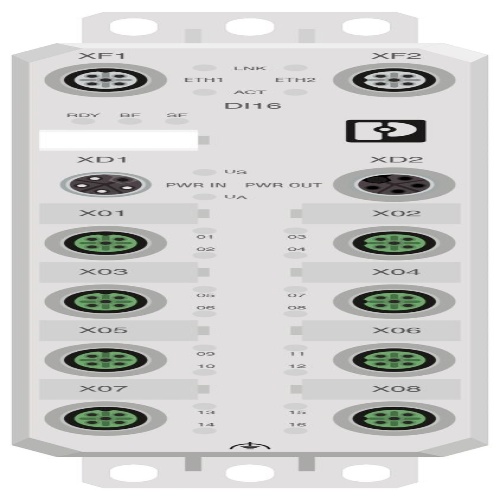

Phoenix Contact 1300834 The Axioline E is a digital input device that utilizes the PROFINET protocol and features an M12 connector with D-coded signals. It has 16 digital inputs and operates at a voltage of 24 V DC, employing a 4-conductor connection technology. The device provides protection against dust (IP65), water jets (IP67), and high-pressure jets (IP69).
Specifications
Manufacturer
Phoenix Contact
Component
I/O Component
PLC & IO Connection Method
M12
Features
Connection with M12 connectors with push-pull fast connection or screw connection
Mapping in accordance with PROFINET specification V2.4 as PROFINET device (Conformance Class C (IRT switch))
PROFINET Fast Startup function supported
PROFINET system redundancy S2 supported
PROFINET supported with min. cycle time of 1 ms
2 Ethernet ports (with integrated switch)
Transmission speed of 100 Mbps
Short-circuit and overload protection
IP65/IP67/IP69 degree of protection
