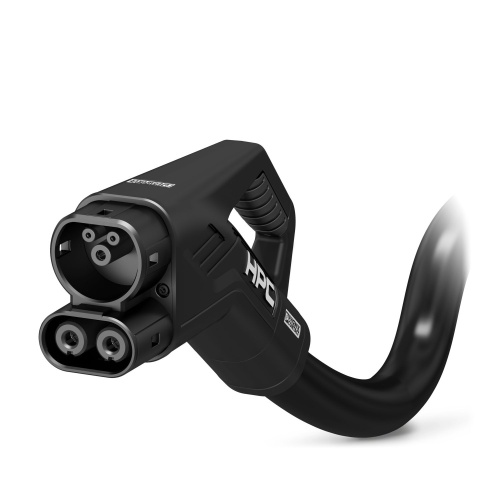

Phoenix Contact 1538067 DC charging cable CHARX PT2C-DC375-7,0MES00P1
Normally In Stock
Code: 673594
Phoenix Contact CHARX PT2C-DC375-7,0MES00P1 - CHARX connect professional, CCS type 2, HPC DC charging cable, up to 500 A in Boost mode, 375 A Permanent, 1000 V DC, with vehicle charging connector and open cable end, Functional prototype, cable: 7 m, black, straight, supports four-conductor measurement technology, with analog temperature sensors, with replaceable mating face frame, with replaceable DC power contacts, with connected PP contact, PHOENIX CONTACT logo, based on IEC 62196-3, for charging electric vehicles (EV) with direct current (DC) - 1538067
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$2455.20
Sale Price
$2046.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1538067 The CHARX professional charging cable is a CCS type 2 cable that can handle up to 500 A in boost mode and 375 A permanently, operating at a maximum voltage of 1000 V DC with a vehicle charging connector and open cable end, featuring four-wire measurement technology, analog temperature sensors, a replaceable mating face frame, and replaceable DC power contacts, bearing the Phoenix Contact CONTACT logo and conforming to IEC 62196-3 standards for direct current charging of electric vehicles.
Specifications
Component
Cable
Manufacturer
Phoenix Contact
Charging Cable Length
7 M
Features
Complete product range
The right charging cable for every application, from the carport to the charging park
Ultra-fast HPC charging with up to 375 kW without liquid cooling
Robust and durable connector design for maximum availability
Highest level of safety with two-chamber sealing system for the separation of DC+ and DC-
Safe against overheating with temperature measurement at every DC power contact
Prepared for four-wire measurement technology, enabling simple billing compliant with calibration laws
Fast and cost-effective maintenance with exchangeable mating face including for the power contacts
Available with your logo on request - for consistent branding of your charging station
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
