Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

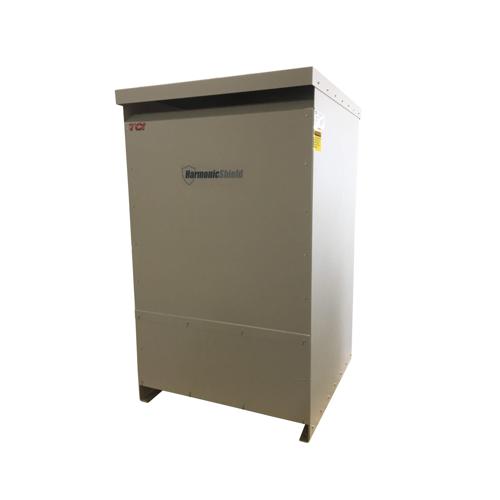

TCI HSD0005CW11000 Harmonic Filter - HSD, 5HP, 600V, 3ph, 60 Hz, 6.1 Amp, UL Type 1
Normally In Stock
Code: 67065
TCI HSD0005CW11000 HSD, 5HP, 600V, 3ph, 60 Hz, UL Type 1, Contactor Version, 150 Watts Loss, 27" x 16.4" x 16.8" (HxWxD)
Condition: New
Usually Ships within 2-4 weeks$3389.36
Sale Price
$2824.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TCI HGL0400AW3C100H - HarmonicGuard Low Capacitance (HGL) is a drive applied passive Harmonic Filter used to meet IEEE-519 5% iTHD when ISC/IL<20. 100kA SCCR, fused branch circuit to protect capacitors, contactor option available to remove capacitor branch. Low Capacitance passive harmonic filter which allows for precise sizing of generators in generator applications (1:1 HP: KVA ratio). UL 508A filter. -
Specifications
VFD Filter Horsepower
5 HP
VFD Filter Contactor
Contactor
VFD Filter Voltage
600 Volt
VFD Filter Line
(HSD) Harmonic Filter
Manufacturer
TCI
VFD Filter Voltage Phase
Three Phase
VFD Filter Watts Loss
150 Watts
VFD Filter Frequency
60 Hz
VFD Filter Enclosure
UL Type 1
Filter Type
Harmonic
Features
Limits total harmonic current distortion down to 5% over the widestg load range in the industry
Ensures IEEE-519 2022 compliance
Intelligent control and monitoring available with PQconnect
Communications and data analytics available via Modbus RTU and EtherNet/IP
Generator compatibility
High quality components
Made in the USA
