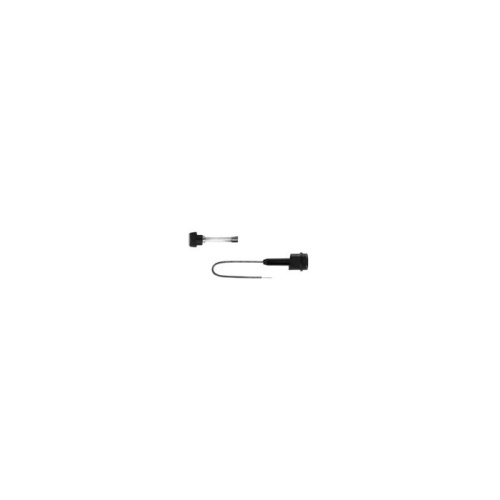

Edison GMQ-5 Fuse - 5 Amp, 300 VAC
Normally In Stock
Code: 670287
Edison GMQ-5 Fuse - 5 Amp, 300 VAC
Condition: New
Usually ships same day or next day $19.98
Sale Price
$16.65
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Edison GMQ-5 - Specialty Fuse GMQ Time-Delay, Rejection Style
Specifications
Fuse Voltage Rating
300 Volts
Manufacturer
Edison
Fuse Amperage Rating
5 Amp
Component
Fuse
Features
Size of type GMQ fuses varies with ampere ratings
Fuse and knob are an integral one-piece unit. There are no replacement knobs (caps)
Units can be panel mounted with a separate steel clip. For the knockout hole (see above), choose #BK/A-104. For the keyhole punch type hole, choose #6374 for panels 0.043” to 0.062” thick, or #4909 for panels 0.030” to 0.042” thick
Do not put tension on line (rear) terminal of fuse holder
GMQ fuse mounts in type HLQ size rejection (size limiting) carrier (prevents overfusing)
HLQ carrier comes with 6” of #18 red insulated solid copper wire attached to the line side
Customer inserts a #18 insulated solid copper wire into load side receptacle
