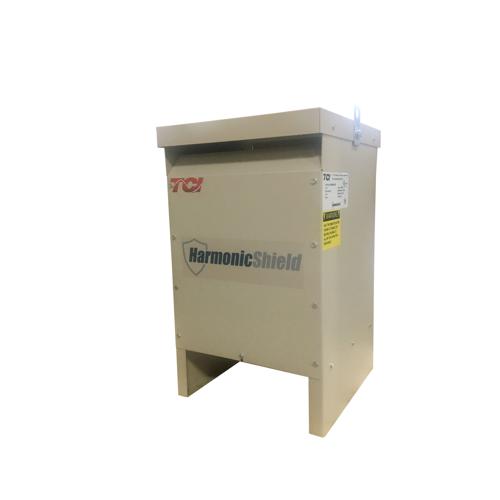

TCI HSD0008AW30000 Harmonic Filter - HSD, 7.5HP, 480V, 3ph, 60 Hz, 12 Amp, UL Type 3R
Normally In Stock
Code: 66974
TCI HSD0008AW30000 HSD, 7.5HP, 480V, 3ph, 60 Hz, UL Type 3R, Standard Version, 150 Watts Loss, 27" x 15.43" x 19.5" (HxWxD)
Condition: New
Usually Ships within 2-4 weeks$3237.73
Sale Price
$2698.11
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TCI HGL0500CW0C1000 - HarmonicGuard Low Capacitance (HGL) is a drive applied passive Harmonic Filter used to meet IEEE-519 5% iTHD when ISC/IL<20. 100kA SCCR, fused branch circuit to protect capacitors, contactor option available to remove capacitor branch. Low Capacitance passive harmonic filter which allows for precise sizing of generators in generator applications (1:1 HP: KVA ratio). UL 508A filter. -
Specifications
VFD Filter Voltage
480 Volt
VFD Filter Contactor
No Contactor
VFD Filter Line
(HSD) Harmonic Filter
Manufacturer
TCI
VFD Filter Horsepower
8 HP
VFD Filter Voltage Phase
Three Phase
VFD Filter Watts Loss
150 Watts
VFD Filter Frequency
60 Hz
VFD Filter Enclosure
UL Type 3R
Filter Type
Harmonic
Features
Limits total harmonic current distortion down to 5% over the widestg load range in the industry
Ensures IEEE-519 2022 compliance
Intelligent control and monitoring available with PQconnect
Communications and data analytics available via Modbus RTU and EtherNet/IP
Generator compatibility
High quality components
Made in the USA
