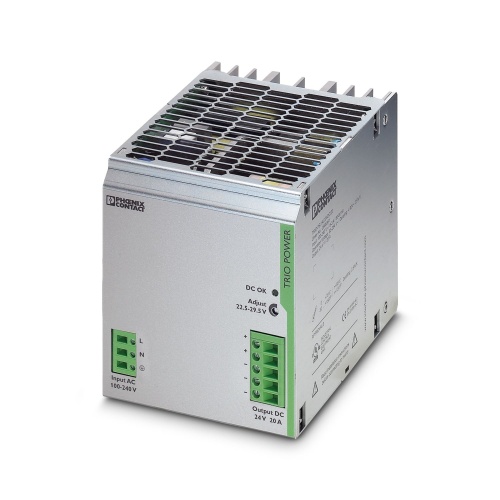

Phoenix Contact 2866381 Power supply TRIO-PS/1AC/24DC/20
Normally In Stock
Code: 664
Phoenix Contact TRIO-PS/1AC/24DC/20. 24 VDC output 20 Amp Power Supply and 85 Vac-264 Vac input voltage. Temperature range of -13 F to 158 F. Din rail mount Screw Connection. (5.12"H x 4.53"W x 6"D).
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$725.30
Sale Price
$604.42
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2866381 A primary-switched TRIO POWER power supply suitable for DIN rail installation is available with a single-phase input and produces a stable 24V DC output at a maximum current capacity of 20 amps.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Watts
480 Watt
Power Supply Voltage Output
24 VDC
Power Supply Housing
Enclosed
Power Supply Amperage Output
20 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
TRIO
Power Supply Amperage Output Range
16-20 Amp
Power Supply Voltage Input Range
85 VAC - 264 VAC
Features
Compensation of voltage drops by means of output voltage that can be adjusted on the front
Rugged design with metal housing and wide temperature range from -25 to +70°C
Maximum operational reliability thanks to high MTBF (mean time between failures) of more than 500,000 hours and high dielectric strength of up to 300 V AC
Use the third negative terminal block as a grounding terminal block and minimize installation costs
