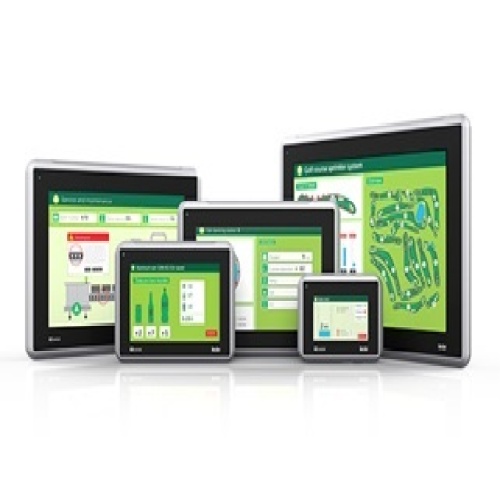

Beijer 630011705 - 4.3" iX CODESYS HMI, 480 X 272 - X2 control 4 - B2 OEM
Normally In Stock
Code: 660749
Beijer 630011705 - 4.3" iX CODESYS HMI, 480 X 272 - X2 control 4 - B2 OEM
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1434.72
Sale Price
$1195.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Beijer 630011705 - Touch operator panel, 4.3" iX CODESYS HMI, 480x272, CPU Dual Core 1GHz, 1GB RAM, 2GB eMMC, 2xLAN, 1x9pin DSUB, USB, SD, 24VDC, -10 to +60C, IP65, CE/FCC, Marine, UL, non-BE branded
Specifications
HMI & PC Processor
1 Ghz
HMI & PC Screen Display Resolution
480 X 272
HMI & PC Memory (RAM)
1 GB
Component
HMI Screen
Manufacturer
Beijer
HMI & PC Screen Display Size
4.3"
Features
X2 control HMI panels combine industrial HMI and CODESYS PLC functionality in the same compact hardware.
Panels range from ultra-compact 4-inch to 15-inch panels designed for demanding applications.
Add standard distributed I/Os and you'll get an elegant, scalable and cost-effective solution that's cutting-edge.
Applications remain elegantly slim with integrated control in the HMI panel. Add remote I/Os to fit your needs, and select between three major fieldbuses – EtherCAT, Modbus RTU and Modbus TCP.
Two separate PLC and HMI systems mean twice the risk of error. X2 control panel changes all that. Simply configure your system with WARP and you're done. It’s never been easier to create applications.
X2 control HMI panels support I/O communication with super-fast EtherCAT as standard.
X2 control HMI panels have two built-in Ethernet ports as standard for communication with other equipment.
