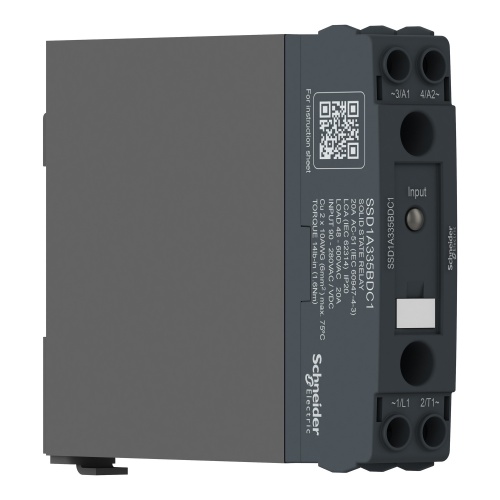

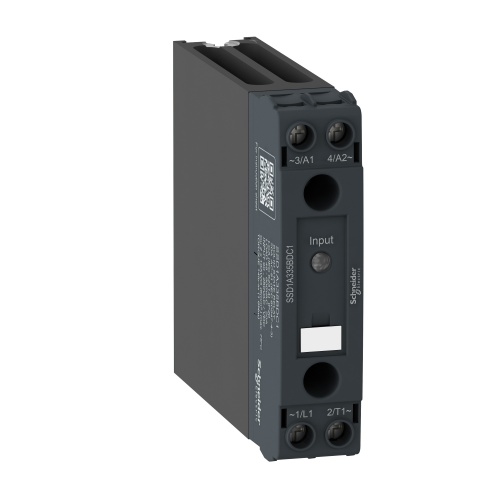

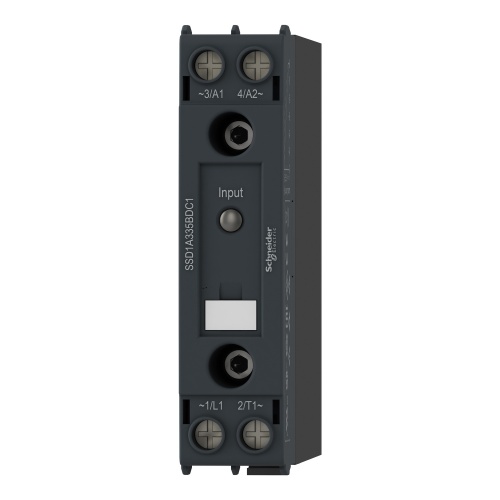

Schneider Electric SSD1A335M7C1 Solid State Relay - 35 Amp
Normally In Stock
Code: 659908
Schneider Electric SSD1A335M7C1 Solid State Relay - 35 Amp
Condition: New
Usually ships Same Day or Next Day$110.71
Sale Price
$92.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric SSD1A335M7C1 - DIN rail mount relay, Harmony Solid State Relays, 35A, zeroVoltage switching, input 90…280V AC/DC, output 48...600V AC
Specifications
Component
Solid State Relay
Manufacturer
Schneider Electric
Relay Load Amperage
35 Amp
Features
This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range

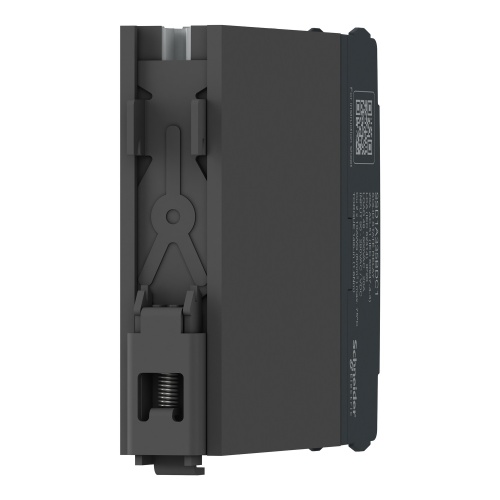

This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch
This is a 35A power rated relay with relay type configuration and zero voltage switching
This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection
It is controlled with a 90Vdc/Vac to 280Vdc/Vac input, has a rated load voltage of 48Vac to 600Vac
It also has a LED input voltage status indicator and clip-in legend for easy identification

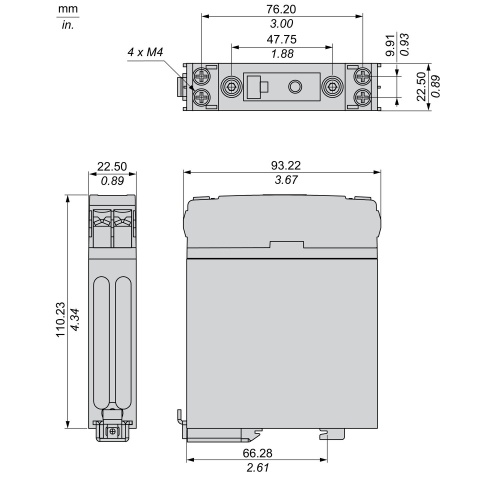

It weighs 0.298Kg and its dimensions are, 22.5mm wide, 116.6mm deep, 93.2mm high
It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications
This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA
Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
