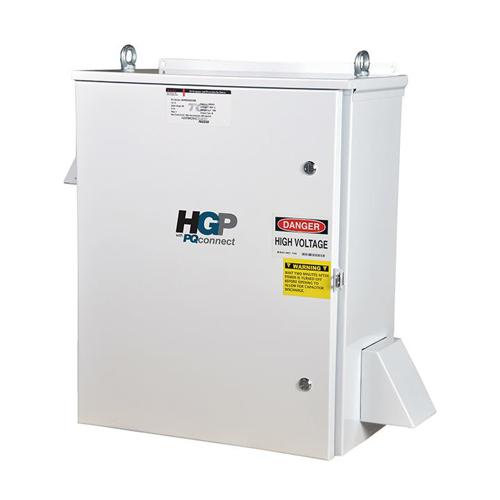

TCI HGP0350CW3C000H (HGP) Harmonic Filter 600 Volt 3 Phase, 336 Amp, 350 HP
Normally In Stock
Code: 65967
TCI HGP0350CW3C000H HarmonicGuard Passive (HGP) Harmonic Filter 600 V, 350 HP, 336 Amp, 105 kVar, 1700 Watts Loss. Type 3R UL Type rating with Contactor and With Heater. No PQconnect
Condition: New
Usually Ships within 2-4 weeks$48267.58
Sale Price
$40222.98
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TCI HGP0450AW1S0000 - The HarmonicGuard Passive (HGP) is a Drive applied passive Harmonic Filter used to meet IEEE-519 5% iTHD or lower with background distortion as high as 5% 100kA SCCR, fused branch circuit to protect capacitors, contactor option available to remove capacitor branch UL 508A filter which allows for end user field maintenance. - 65.77" x 57.13" x 26.32" (HxWxD)
Specifications
VFD Filter Line
(HGP) Harmonic Filter
VFD Filter Horsepower
350 HP
VFD Filter Voltage
600 Volt
VFD Filter Impedance
5%
VFD Filter Protected Side
Line Side (In)
Manufacturer
TCI
VFD Filter Voltage Phase
Three Phase
VFD Filter Frequency
60 Hz
VFD Filter kVar
105 Kvar
VFD Filter Watts Loss
1900 Watts
VFD Filter Enclosure
UL Type 3R
Filter Type
Harmonic
VFD Filter Includes Heater
Heater
Features
Limits total harmonic current distortion down to 5% over the widestg load range in the industry
Ensures IEEE-519 2022 compliance
Intelligent control and monitoring available with PQconnect
Communications and data analytics available via Modbus RTU and EtherNet/IP
Generator compatibility
High quality components
Made in the USA
