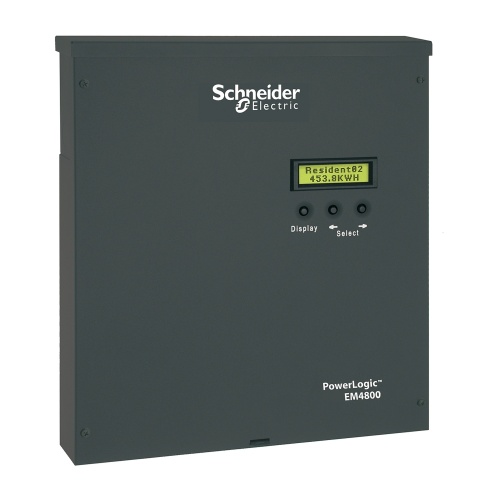

Schneider Electric METSEEM480516 - EM4800 multi-circuit energy meter - 24 x 5 A inputs, 120 V - 60 Hz
Normally In Stock
Code: 658691
Schneider Electric METSEEM480516 - EM4800 multi-circuit energy meter - 24 x 5 A inputs, 120 V - 60 Hz
Condition: New
CALL FOR LEAD TIME$14276.32
Sale Price
$11896.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric METSEEM480516 - EM4800 multi-circuit energy meter - 24 x 5 A inputs, 120 V - 60 Hz
Specifications
Manufacturer
Schneider Electric
Features
This multi-circuit power meter is part of the PowerLogic EM4800 Series
This compact multi-circuit energy meter enables reliable metering of individual tenants with a low installation cost-per-point
It combine revenue-accurate electricity sub-metering with advanced communications technology
It is ideal for multi-tenant or departmental metering applications within office, condominiums, malls and other multi-user environments
This version monitor up to 24 tenants with a single device, combined with 5 amps split or solid core current transformers
Designed for 120 volts networks, working at 60 Hz
Measurement accuracy is plus or minus 0.5 %, compliant with ANSI C12.1 and C12.20 Class 0.5
IEC 62053-22 Class 0.5S
The printed board is installed in a Type 1 black enclosure, with an integrated backlit LCD display, 2 lines, on the door
Mechanical dimensions are 335 mm in width, 440 mm in height and 55 mm in depth
for 5.4 kg.
