Phoenix Contact 2866763 Power supply QUINT-PS/1AC/24DC/10
Normally In Stock
Code: 658
Phoenix Contact QUINT-PS/1AC/24DC/10. 24 VDC output 10 Amp Premium Power Supply(Class 1 Div 2) with input voltage 85-240 Vac or 90-350 Vdc. Din rail mount Screw Connection. Temperature range of -13 F to 158 F. Din rail mount.
Condition: New
Usually ships Same Day or Next Day$623.29
Sale Price
$519.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

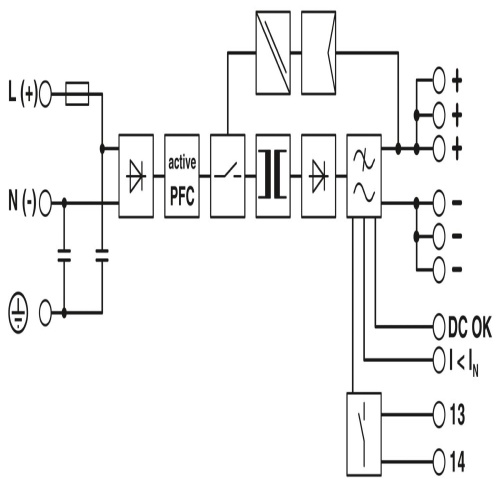

Phoenix Contact 2866763 The QUINT POWER primary-switched power supply unit features a screw connection and can be mounted on a DIN rail, utilizing the SFB Technology for selective fuse breaking. It is designed to accept a single-phase input and produces a stable 24V DC output with a maximum current capacity of 10A.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
24 VDC
Power Supply Watts
240 Watt
Power Supply Housing
Enclosed
Power Supply Amperage Output
10 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
6-10 Amp
Power Supply Voltage Input Range
85 VAC - 264 VAC
Power Supply Voltage Input Range
90 VDC - 350 VDC
Features
Preventive function monitoring

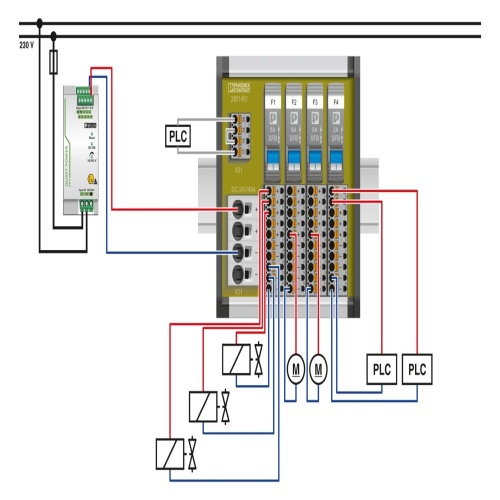

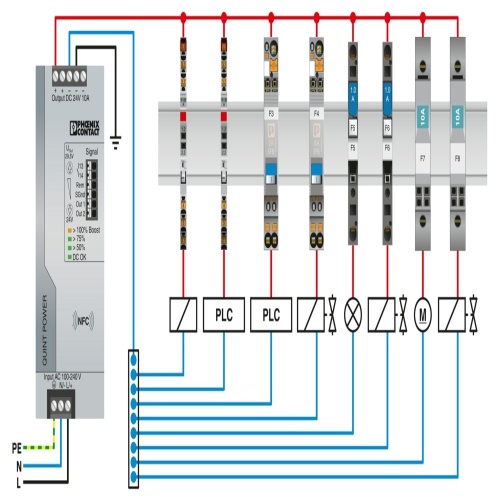

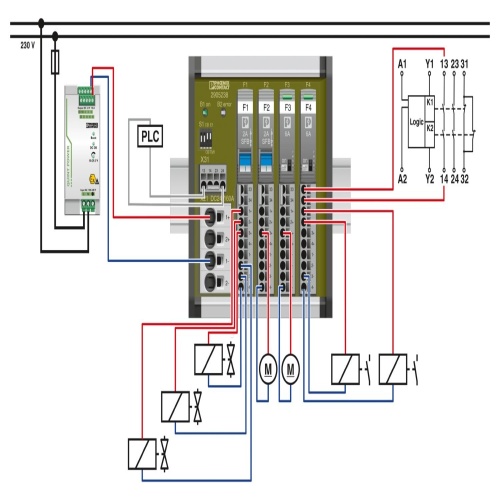

Fast tripping of standard circuit breakers with dynamic power reserve SFB (selective fuse breaking) technology with up to 6 times the nominal current for 12 ms
For superior system availability
Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current permanently
