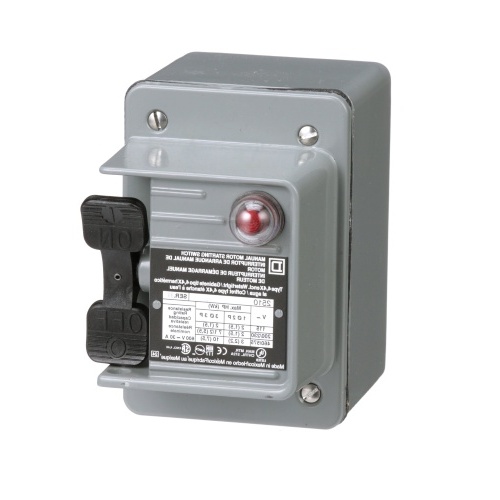

Schneider Electric 2510KW1AH NEMA Manual Starter - 30 Amp, Two Pole
Normally In Stock
Code: 657690
Schneider Electric 2510KW1AH NEMA Manual Starter - 30 Amp, Two Pole
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$598.15
Sale Price
$498.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric 2510KW1AH - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 115 VAC indicator, NEMA 4, two conduit
Specifications
Manufacturer
Schneider Electric
Starter Poles
Two Pole
Starter Amperage
30 Amp
Component
NEMA Manual Starter
Features
2510K manual motor switches are Intended for industrial, commercial and residential applications
These switches are for applications where overload protection is not required or is provided separately
Manual motor switches provide manual On Off control of small motors
They are designed for single or three phase AC motors
This nonreversing manual switch is toggle operated
The maximum operational voltage is 600 VAC and 250 VDC
This two pole switch is rated for 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, 3 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 20A continuous
The screw clamp terminals will accept 14 to 10 AWG copper wire
This switch has a 115 V red pilot light indicator
A NEMA 4 watertight and dusttight die cast zinc alloy enclosure is used to protect this manual motor switch
This enclosure has one conduit entry on the bottom and one on the top
The 0.75 inch conduit entries are tapped with number 14 pipe threads
This device is 4.38 inches tall, 3.00 inches wide and 4.56 inches deep
A toggle handle is used to turn the manual starter on and off
The toggle handle can be padlocked in the off position
This device is UL Listed and CSA certified.
