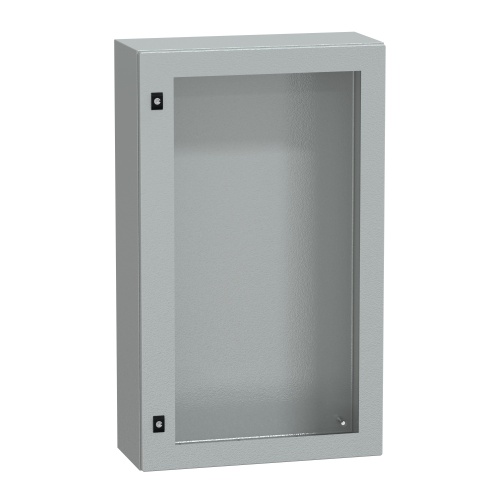

Schneider Electric NSYCRN106250T Steel Enclosure - 39.4" x 23.6" x 9.8" (HxWxD), NEMA 4/4X
Normally In Stock
Code: 655464
Schneider Electric NSYCRN106250T Steel Enclosure - 39.4" x 23.6" x 9.8" (HxWxD), NEMA 4/4X
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$555.96
Sale Price
$463.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYCRN106250T - PanelSeT CRN, Steel, 1 Door, Glass, Front Accessibility, Reversible 120° Opening, NEMA 4/4X - 39.4" x 23.6" x 9.8" (HxWxD)
Specifications
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Width
23.6"
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure Height
39.4"
Enclosure Door Type
Glass
Enclosure Depth
9.8"
Features

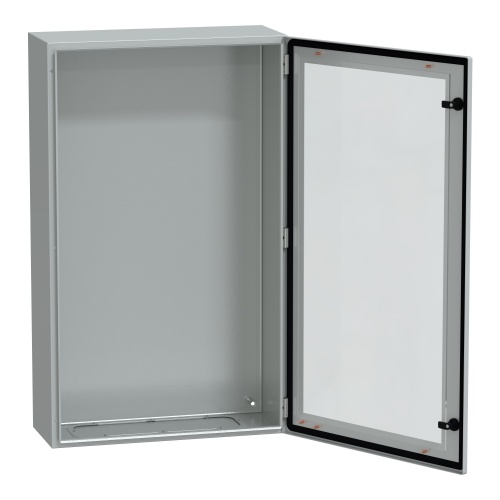

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application
This compact enclosure is composed of body, cable gland plate, door, lock
The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant
It has IP66 and IK08 protection level, which can help protect against impact, water and dust

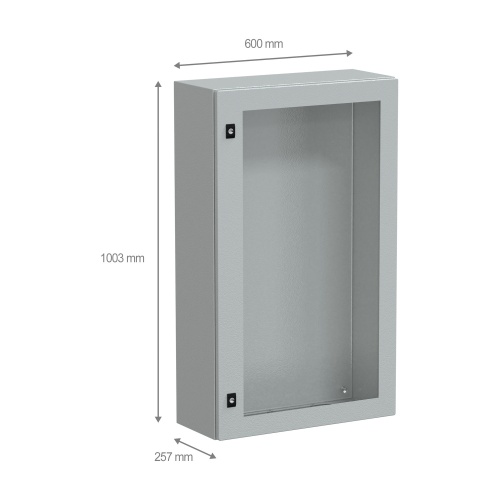

The dimensions are (W) 600 mm x (H) 1000 mm x (D) 250 mm
It features a back welded with double profile forming a protected sealed area, sides made from a single folded section
The door type is glazed, it has 1 door(s) and the door opening side is reversible
Equipped with a 3 mm double-bar lock lock type
Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish
This compact enclosure is c.UL certified.
Code: 655464
Schneider Electric NSYCRN106250T Steel Enclosure - 39.4" x 23.6" x 9.8" (HxWxD), NEMA 4/4X
$555.96
Sale Price
$463.30
