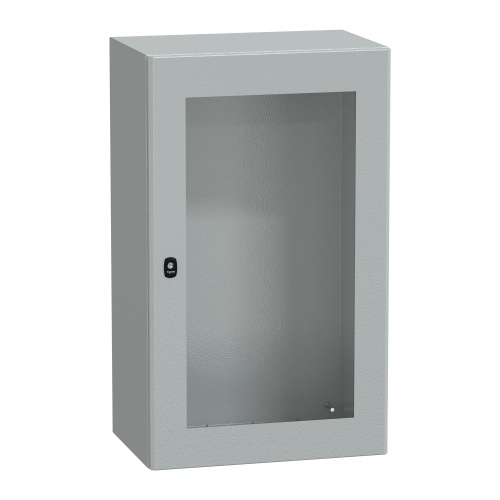

Schneider Electric NSYS3D10640T Steel Enclosure - 39.4" x 23.6" x 15.7" (HxWxD), NEMA 4X/13
Normally In Stock
Code: 655456
Schneider Electric NSYS3D10640T Steel Enclosure - 39.4" x 23.6" x 15.7" (HxWxD), NEMA 4X/13
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$433.73
Sale Price
$361.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYS3D10640T - PanelSeT S3D, Steel, 1 Door, Glass, Front Accessibility, Reversible 120° Opening, NEMA 4X/13 - 39.4" x 23.6" x 15.7" (HxWxD)
Specifications
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Width
23.6"
Enclosure Depth
15.7"
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Height
39.4"
Enclosure Door Type
Glass
Features
Spacial S3D wall mounted steel enclosure with glazed door

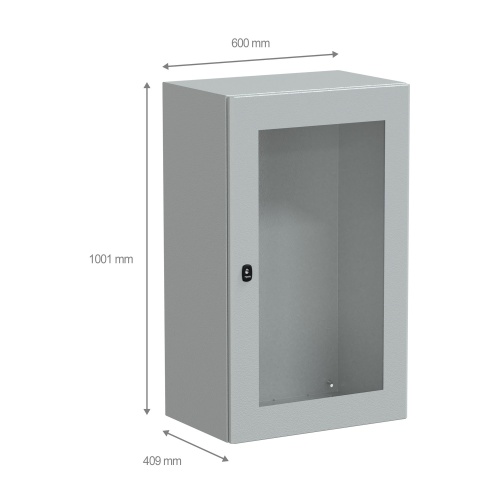

1000 x 600 x 400 mm
Single piece body, without mounting plate
Robust construction based on a new design
3-point closure system with handle and 3 mm double bar lock insert
Steel made, epoxy-polyester powder finish
Gutter shaped front rail double sheet thickness
Protection IP 66, IK10, Grey RAL 7035
1 cable gland plate included, standard
Extensive range of accessories
Packaging is reusable after assembly.
