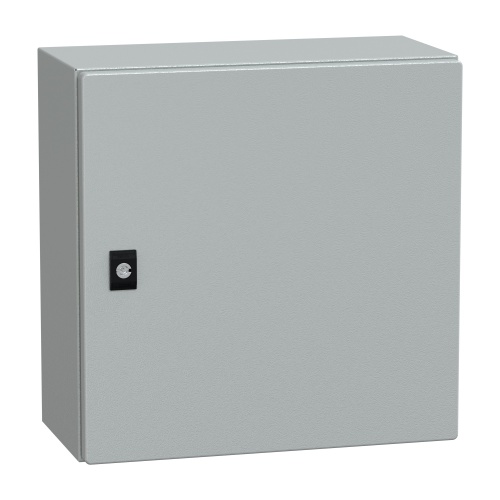

Schneider Electric NSYCRN44200 Steel Enclosure - 15.7" x 15.7" x 7.9" (HxWxD), NEMA 4/4X
Normally In Stock
Code: 655338
Schneider Electric NSYCRN44200 Steel Enclosure - 15.7" x 15.7" x 7.9" (HxWxD), NEMA 4/4X
Condition: New
Usually ships Same Day or Next Day$116.75
Sale Price
$97.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYCRN44200 - PanelSeT CRN, Steel, 1 Door, Solid, Front Accessibility, Reversible 120° Opening, NEMA 4/4X - 15.7" x 15.7" x 7.9" (HxWxD)
Specifications
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Height
15.7"
Enclosure Width
15.7"
Enclosure Door Type
Solid
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure Depth
7.9"
Features
The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application
This compact enclosure is composed of body, cable gland plate, door, lock
The compact enclosure is made of steel (body), making it durable and resistant
It has IP66 and IK10 protection level, which can help protect against impact, water and dust

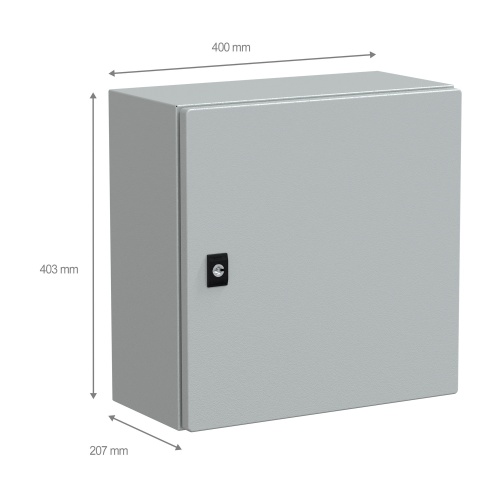

The dimensions are (W) 400 mm x (H) 400 mm x (D) 200 mm
It features a back welded with double profile forming a protected sealed area, sides made from a single folded section
The door type is plain, it has 1 door(s) and the door opening side is reversible
Equipped with a 3 mm double-bar lock lock type
Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish
This compact enclosure is c.UL certified.
