Schneider Electric NSYPLA1573G Polyester Enclosure - 59.1" x 29.5" x 12.6" (HxWxD), NEMA 12/1/2/3S/5/3X/3R/3/13
Normally In Stock
Code: 655228
Schneider Electric NSYPLA1573G Polyester Enclosure - 59.1" x 29.5" x 12.6" (HxWxD), NEMA 12/1/2/3S/5/3X/3R/3/13
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$977.59
Sale Price
$814.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYPLA1573G - Thalassa PLA, Polyester, 1 Door, Solid front, Rear/Front Accessibility, Reversible 120° Opening, 4 points lock, 5 mm double-bar, NEMA 12/1/2/3S/5/3X/3R/3/13 - 59.1" x 29.5" x 12.6" (HxWxD)
Specifications
Enclosure Composition
Polyester
Manufacturer
Schneider Electric
Enclosure Height
59.1"
Enclosure Width
29.5"
Enclosure Depth
12.6"
Component
Non-Metallic Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Enclosure NEMA Rating
NEMA Type 1
Enclosure NEMA Rating
NEMA Type 3S
Enclosure NEMA Rating
NEMA Type 2
Enclosure NEMA Rating
NEMA Type 3X
Enclosure NEMA Rating
NEMA Type 5
Enclosure Door Type
Solid Front
Features

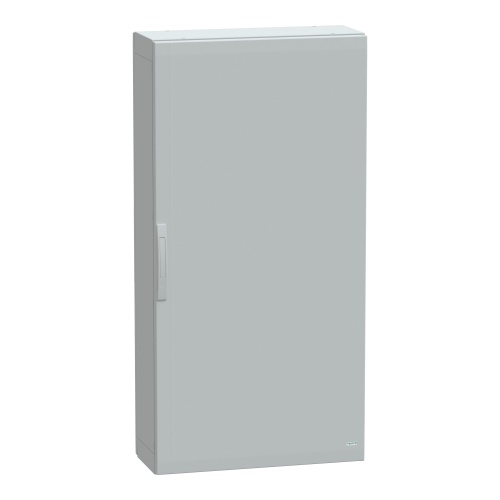

Thalassa PLA floor standing polyester enclosure

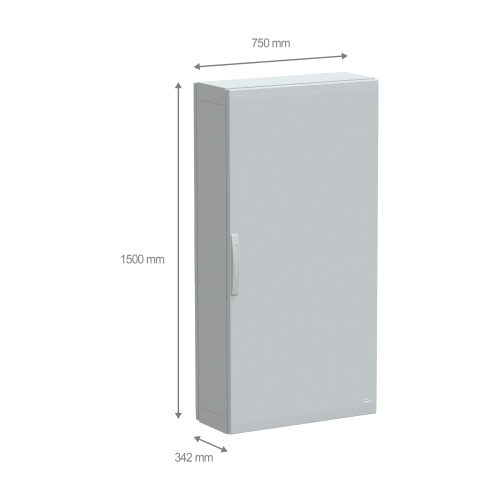

1500x 750x 320 mm
Sealed top and bottom part, assembled with side parts
4 points lock, 5 mm double-bar insert
1 door
Accesible front and rear
Reversible 120° opening
Polyester reinforced with fibreglass
Grey RAL 7035
IP65, IK10, NEMA (1,2,12,13)
960°C fire resistance.
