Code: 652263

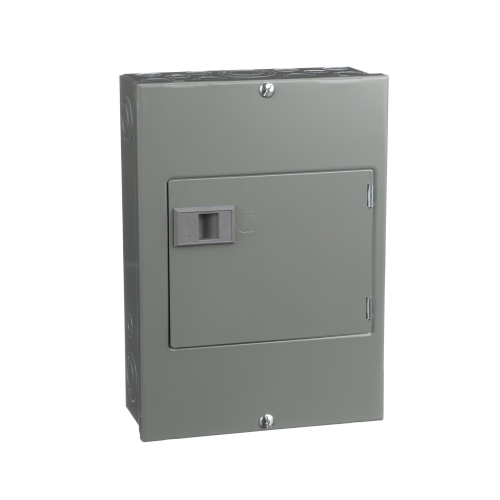

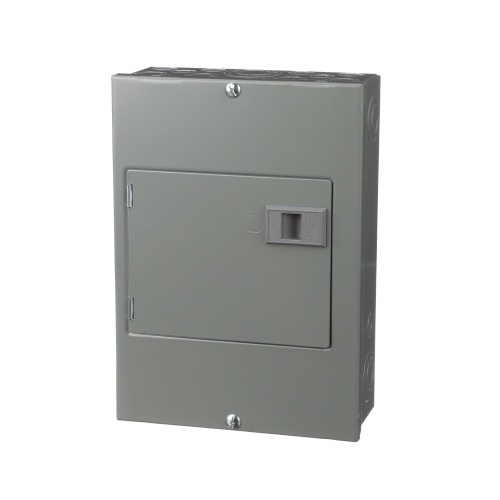

Schneider Electric QO48M30DSGP Generator Panel - 4 Spaces, NEMA 1
Normally In Stock
Schneider Electric QO48M30DSGP - 10 kA, 4 Spaces - 14.49" x 10.71" x 4.49" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$704.82
Sale Price
$587.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric QO48M30DSGP - Generator panel, QO, 1 phase, 4 spaces, 8 circuits, 30A main breaker with interlock, NEMA1, surface cover door, UL
Specifications
Manufacturer
Schneider Electric
Number of Spaces
24
Component
Load Center
Interrupt Rating
65 Ka
Maximum Voltage
208Y/120 VAC
Maximum Voltage
240/120 VAC Delta
Maximum Voltage
240 VAC Delta
Features
QO generator panels are for the manual transfer from utility to generator power
QO generator panels are for back-up power applications
This sub-panel connects directly to the main load center and provides four single pole spaces that will accommodate up to eight circuits dedicated for back-up power
This QO generator panel uses two factory installed, two pole QO circuit breakers
One is fed by the utility, while the second circuit breaker is back-fed to the back-up power source, such as a generator
Power source switching is easy
Simply turn the main power breaker to the \OFF\ position and then turn the generator fed breaker to the \ON\ position
A factory installed mechanical interlock prevents both main breakers being in the \ON\ position at the same time
This NEMA 1 enclosure with a surface cover with a door is for indoor applications
This panel has a 30A rating and a 10 kA short circuit current rating
The lugs will accept 14 AWG to 8 AWG copper or aluminum wire
This QO generator panel has a height of 12.57 inches, a width of 8.88 inches and a depth of 3.80 inches
This generator panel is UL Listed.
