Code: 652098

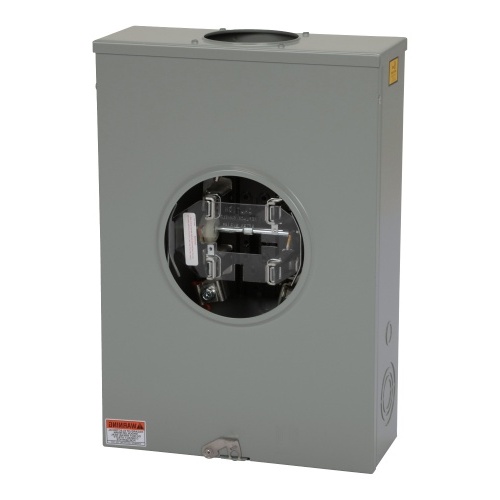

Schneider Electric UTH4213T Meter Socket - 200 Amp, 4 Jaws, NEMA 3R
Normally In Stock
Schneider Electric UTH4213T - Single Phase, 200 Amp, 4 Jaws - 20.5" x 13.7" x 5.8" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$551.95
Sale Price
$459.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric UTH4213T - Individual meter socket, ringless socket, lever bypass, 4 jaws no release, OH, UG, 200 A, up to 600 VAC single phase 3W
Specifications
Manufacturer
Schneider Electric
Component
Meter Socket
Phase
Three Phase In
Phase
Three Phase Out
Amperage
200 Amp
Features
Individual Meter Sockets are available for single or three phase with a 600 VAC maximum
These individual meter sockets can be with and without horn or lever bypass
The sockets have a 10 kA short circuit current rating as standard but could have a higher rating with utility approval
Units are supplied with a bonded neutral
Units are supplied with a hub opening in top end wall which requires the use of a bolt on hub or a closing plate
This ringless meter socket has four jaws with lever bypass and jaw release
This meter socket is for single phase 3 wire systems up to 600 VAC
This meter socket has a 200 A rating
This unit can be for a feed from an overhead or underground service
This unit has a NEMA 3R surface mounting enclosure that is 19.00 inches tall, 13.00 inches wide and 4.94 inches deep
The main lugs, the load lugs and the neutral lug will accept one 6 AWG to 350 kcmil copper or aluminum wire
The ground will accept 14 AWG to 2 AWG copper or aluminum wire
This individual meter socket is UL Listed.
