Code: 651802

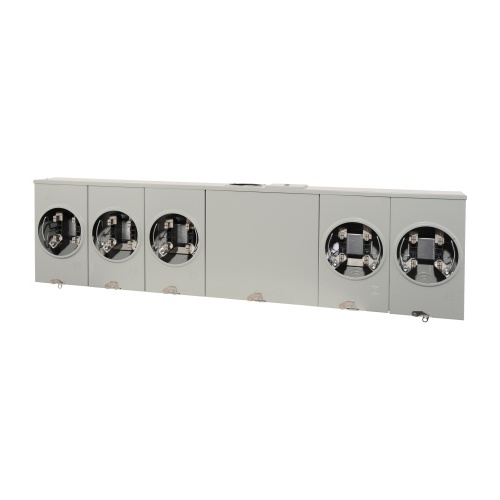

Schneider Electric UT5R2392TU Meter Socket - Spaces, 4 Without Jaw Release Jaws, NEMA 3R
Normally In Stock
Schneider Electric UT5R2392TU - Spaces, 4 Without Jaw Release Jaws - 6" x 15" x 56" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$1593.65
Sale Price
$1328.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric UT5R2392TU - Horizontal meter sockets, 5 ringless sockets, no bypass, 4 jaws, OH, UG, 200 A
Specifications
Manufacturer
Schneider Electric
Component
Meter Socket
Number of Spaces
20
Amperage
100 Amp
Features
UT horizontal ganged meter sockets are for single phase systems up to 600 VAC
These main lug units can be from 2 through 6 meter positions
Units can be with or with a horn or lever bypass and be fed from the end or the center
This horizontal ganged meter socket has five meter positions without bypass
Each socket position has a 4 jaw socket without jaw release
The main is rated at 500 A
The branches have a 200 A rating
This unit can be feed from an overhead or underground service
This unit has a NEMA 3R surface mounting enclosure that is 14.12 inches tall, 54.75 inches wide and 5.38 inches deep
The main lugs will accept one 1/0 AWG to 500 kcmil or with two 1/0 AWG to 350 kcmil copper or aluminum wire
The branch lugs will accept 8 AWG to 250 kcmil copper or aluminum wire
This horizontal ganged meter socket device is UL Listed.
