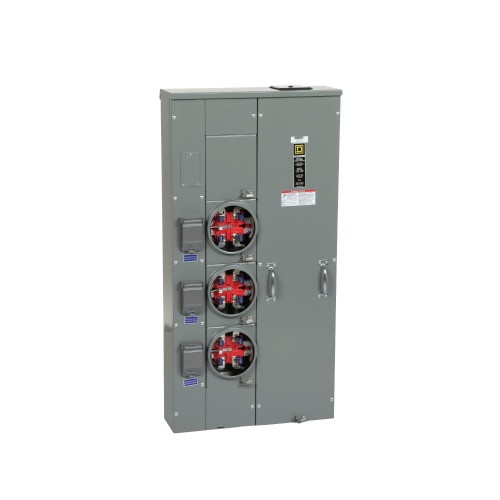

Schneider Electric MPH33125 Meter Stack - 120/240 VAC, 5 Jaws, 3 Meter Sockets, NEMA 3R
Normally In Stock
Code: 651690
Schneider Electric MPH33125 - Single Phase, 120/240 VAC, 5 Jaws, 3 Meter Sockets - 49.09" x 25.4" x 9.02" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$917.58
Sale Price
$764.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric MPH33125 - Meter center, MP Meter-Pak, 3 sockets, horn bypass, 5 jaws, 300A bus, 125A max breaker rating, ringless
Specifications
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Meter Stack
Number of Spaces
24
Phase
Single Phase 3 Wires
Maximum Voltage
120/240 VAC
Features
Two to six meter sockets and tenant circuit breaker slots for downstream metering and protection
125A, 200A, and 225A units available, ringless or ring type with varied bypass options
Suitable only for use as service equipment
