Phoenix Contact 2866750 Power supply QUINT-PS/1AC/24DC/ 5
Normally In Stock
Code: 651
Phoenix Contact QUINT-PS/1AC/24DC/5. (See newer model Phoenix 2904600) 24 VDC output 5 Amp Premium Power Supply(Class 1 Div 2) with input voltage 85-240 Vac or 90-350 Vdc. Temperature range of -13 F to 158 F. Din rail mount Screw Connection.
Condition: New
Usually ships Same Day or Next Day$433.25
Sale Price
$361.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

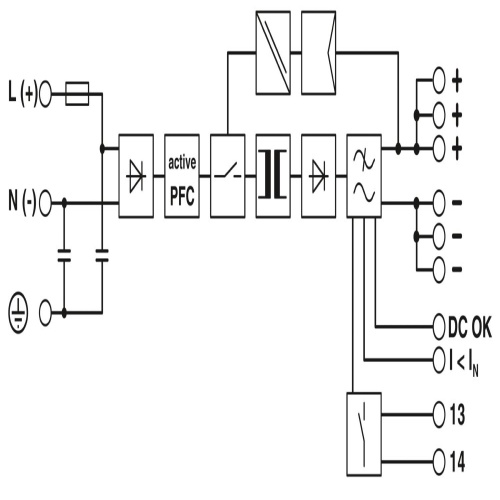

Phoenix Contact 2866750 The QUINT POWER is a primary-switched power supply unit featuring a pluggable screw connection and DIN rail mounting option. It incorporates SFB Technology, which includes selective fuse breaking capabilities. The unit accepts a single-phase input and provides a DC output of 24V at 5A.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Watts
120 Watt
Power Supply Voltage Output
24 VDC
Power Supply Housing
Enclosed
Power Supply Amperage Output
5 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input Range
85 VAC - 264 VAC
Power Supply Voltage Input Range
90 VDC - 350 VDC
Features
Preventive function monitoring
Fast tripping of standard circuit breakers with dynamic power reserve SFB (selective fuse breaking) technology with up to 6 times the nominal current for 12 ms
For superior system availability
Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current permanently
