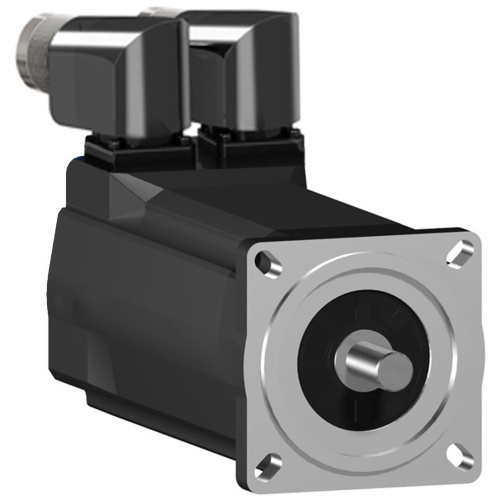

Schneider Electric SH30701P01F2000 Servo Motor - 8000 RPM (Max), 5.7 Amp, 690 W, 3 Phase
Normally In Stock
Code: 650862
Schneider Electric SH30701P01F2000 - Servo Motor, Natural Convection, 3 Pole, With Holding brake, 8000 RPM (Max), 690 W, 5.7 Amp, 3 Phase
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$3091.18
Sale Price
$2575.98
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric SH30701P01F2000 - servo motor SH3 070, 1,25Nm, no key, single, brake, 90°conn, IP54, IP65, 8k RPM
Specifications
Motor Voltage Phases
3 Phase
Manufacturer
Schneider Electric
Motor Amperage (Full Load)
5.7 Amp
Motor RPM's
8000 RPM
Motor Watts
690 W
Features
This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3

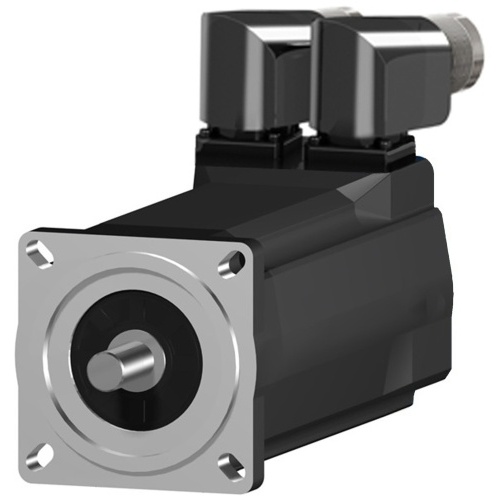

The 3-pole servo motor features maximum mechanical speed of 8000RPM and smooth shaft end with holding brake
It is an equipped with an absolute single-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution
It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 1.8A and a continuous power of 690W
The shaft dimensions are 11mm (diameter) x 23mm (length)
It is furnished with rotatable right angled connectors for electrical connection
It is an IP54 and IP65 rated product
The length of this product is 179.5mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole
It weighs 2.3kg
This range is compatible with PacDrive 3 for motion centric machines
It supports 70mm international standard flange mount with a natural convection cooling system
Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions
Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
