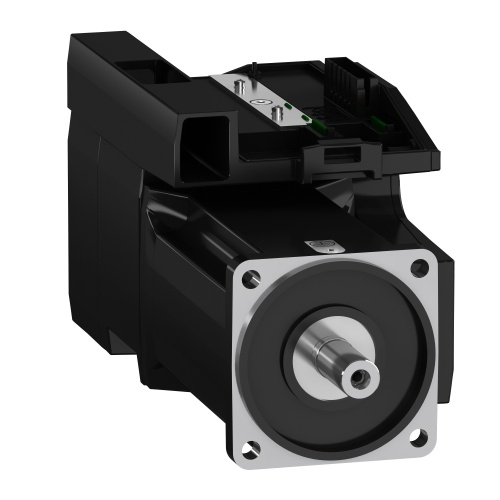

Schneider Electric BMI1002T32A Servo Motor - 6000 RPM (Max), 30 Amp, 1 Phase, 240 Volt
Normally In Stock
Code: 650205
Schneider Electric BMI1002T32A - Servo Motor, Natural Convection, 10 Pole, Without Holding brake, 6000 RPM (Max), 240 Volt, 30 Amp, 1 Phase
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$7315.42
Sale Price
$6096.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric BMI1002T32A - servo motor BMI 1-phase - keyed IP65 multiturn - 131072 p/t x 4096 t
Specifications
Manufacturer
Schneider Electric
Motor Voltage Phases
1 Phase
Motor Amperage (Full Load)
30 Amp
Motor Voltage
240 Volt
Motor RPM's
6000 RPM
Features
This product is part of the Lexium 32i range, an offer integrated servo drive from 0.6kW to 2.2kW
The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 6000RPM and keyed shaft without holding brake
It is equipped with a SinCos Hiperface® encoder (131072 points/turn x 4096 turns) for automatic transmission of data from the servo motor to the servo drive
BMI servo motor has a medium inertia motor, which means it is particularly suitable for medium and high-load applications
It helps to simplify installation and adjustment through a more robust adjustment of the movement
It is a servo motor with a rated supply voltage of 115V to 230V and a continuous output current of 6A at 8kHz
The shaft dimensions are 19mm (Diameter) x 40mm (Length)
It is furnished with printed circuit board connector for electrical connection
It is an IP65 rated product
Its dimensions are 273mm (Length) x 100mm (Width) and centring collar dimensions are 3.5mm (Depth) x 95mm (Diameter) with 115mm circle diameter of the mounting hole
It is suitable for applications involving high-precision, dynamic positioning such as material handling, material working, packaging and printing
This product is compatible with drive control unit LXM32i CANopen and drive control unit LXM32i EtherCAT
It supports international standard 100mm flange mount with a natural convection cooling system
Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the control unit, which provides automatic motor identification when the Lexium 32i starts
Lexium BMI servo motor provides high power density values to optimize machine compactness
BMI servo motor has a medium inertia motor, which means they are particularly suitable for medium and high-load applications.
