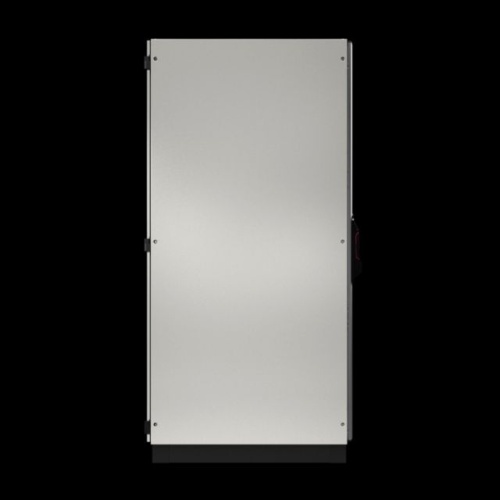

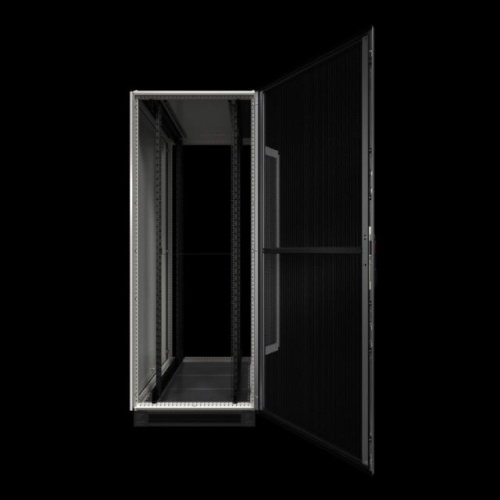

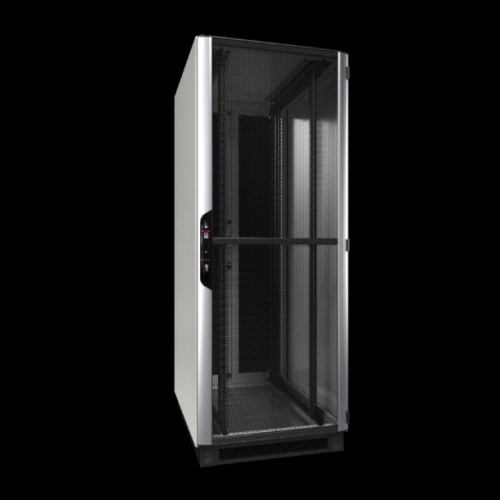

Rittal 5309166 - Includes: VX enclosure frame with doors and roof plate, Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges, Sheet steel rear door, vented (vented surface area approx. 85% perforated), vertically divided, 180° hinges, Lock front and rear: Comfort handle for profile half, cylinders and security lock 3524 E, 482.6 mm (19") mounting angle, standard, variably screw, fastened to depth stays at the top and bottom, Side panels, one, piece, for screw fastening, Roof plate, multi, piece, with side cable entry in the depth, double, sided, prepared for fan mounting plate, Base module mounted at front as infill panel, Base/plinth system VX, 100 mm, vented, Base/plinth corner pieces and trim panels, sides, screw, fastened, Base/plinth trim panels, front and rear plus corner and baying covers supplied loose, 4 levelling feet, M12, including base/plinth Adapter (supplied loose), Spacers, height 50 mm, to raise a cover plate above the fan cut, out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut, out., 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose), 25 multi, tooth screws, conductive (supplied loose), 4 combination rails for inner and outer mounting level, to fit rack depth (supplied loose), 10 cable shunting rings, metal, 125 x 65 mm (supplied loose), IPPC pallet, Base module mounted at front as infill panel, depth 75 mm
