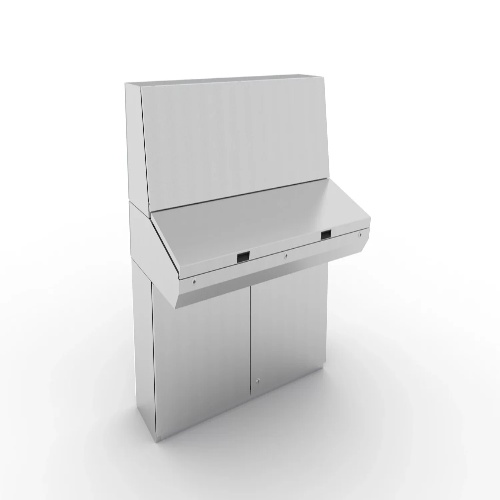

nVent Hoffman MPCS083 Stainless Steel Enclosure - 27.6" x 31.5" x 19.7" (HxWxD)
Normally In Stock
Code: 645777
nVent Hoffman MPCS083 Console System - NEMA Type 4X/12/13 - 27.6" x 31.5" x 19.7" (HxWxD)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$7637.74
Sale Price
$6364.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman MPCS083 - Base console 700x800x500
Specifications
Enclosure Composition
Stainless Steel
Enclosure Depth
19.7"
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
31.5"
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Enclosure Height
27.6"
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
Material: AISI 304 pre-grained stainless steel / AISI 316L (on request). Body and door: 2 mm. Rear panel: 1.5 mm. Bottom plates: 1.5 mm. Mounting plate: 2.5 mm galvanized steel.
Body: Folded and seam welded. Console construction includes a base that provides a distance between the floor and the lower part of the door/s, acting as an integrated plinth.
Mounting plate: Standard in base unit. Fixed by fixing brackets on C rail, top and bottom for depth adjustment. Optional in desk and top section units.
Lock: Double-bit 3 mm locks for top section and desk unit. For base, two double-bit 3 mm locks. Other options available. See wall mounting section.
Cable access: Bottom opening in base unit for cable access. Bottom plates for cable glanding supplied as standard.
Earthing: M8 threaded studs on bodies, doors and rear panels.
Finish: 400 pre-grained stainless steel.
Protection: Single door: IP 66, TYPE 4X, 12, 13, IK 10. Double door: IP 55, TYPE 12, 13, IK 10.
Delivery: The base unit is provided with a mounting plate as standard. Desk and top section units have mounting plates provided as accessories. All top and base apertures can be closed by choosing the appropriate accessory plate. Suitable nuts and washers for the various earthing studs are provided.
