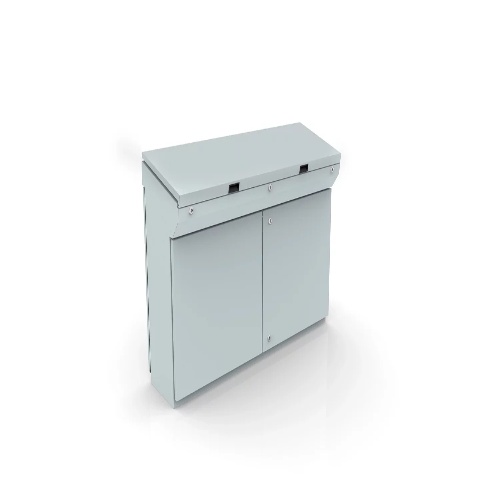

nVent Hoffman MPG16R5 Steel Enclosure - 38.8" x 63" x 15.7" (HxWxD)
Normally In Stock
Code: 645500
nVent Hoffman MPG16R5 One-Piece Console - 38.8" x 63" x 15.7" (HxWxD)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$3819.48
Sale Price
$3182.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman MPG16R5 - Console 985x1600x400
Specifications
Enclosure Width
63"
Enclosure Depth
15.7"
Component
Steel Enclosure
Enclosure Height
38.8"
Manufacturer
Hoffman
Features
Lock: Double-bit 3 mm locks for top panel. For base, two double-bit 3 mm locks.
Doors and panels: Single folded surface mounted with hinges, allowing left and right-hand opening to base door. Angle 12° from horizontal. Concealed hinges on top edge allow 90° opening. Panel held open by self engage/self release mechanical panel stay. Double door on 1200 and 1600 mm wide base units.
Mounting plate: Standard mounting plate in base unit.
Cable inlet: Bottom opening for cable access. Bottom plates for cable glanding supplied as standard.
Body: Folded and seam welded. Console construction includes a base that provides a distance between the floor and the lower part of the door/s, acting as an integrated plinth.
Material: Body and door: 1.5 mm mild steel. Rear panel. 1.5 mm mild steel. Bottom plates: 1.2 mm galvanized steel. Mounting plate: 2.5 mm galvanized steel.
Earthing: M8 threaded studs on body, door, top panel and rear panel.
Delivery: Mounting plate and suitable nuts and washers for earthing. The console is delivered on a wooden pallet.
Protection: Single door: IP 66, TYPE 4, 12, 13, IK 10. Double door: IP 55, TYPE 12, 13, IK 10.
Finish: RAL 7035 structured powder coating.
