Code: 642039

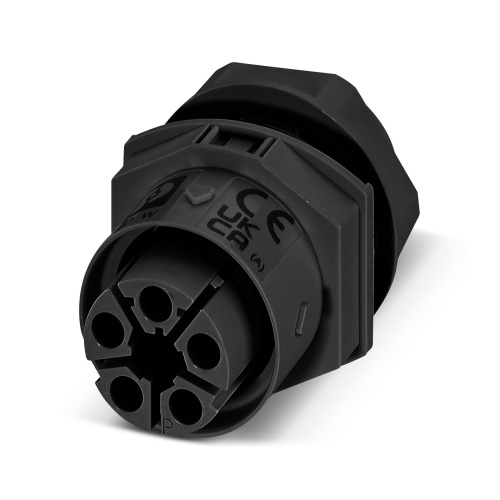

Phoenix Contact 1088686 Panel feed-through IPD W 5P2,5 F M25 BK
Normally In Stock
Phoenix Contact IPD W 5P2,5 F M25 BK Panel feed-through - 5 Positions, Black - 1088686
Condition: New
Usually ships Same Day or Next Day$18.49
Sale Price
$15.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1088686 The panel feed-through connector product family IPD features push-in connections with a maximum of 4 positions for positive and earth contacts, as well as 25-pin sockets for lower current ratings up to 0.5mm² and 2.5mm², suitable for use at 600V and rated for 17.5A. These connectors are characterized by their black color and coding "P".
Specifications
Connector Color
Black
Component
Panel Feed-Through
Manufacturer
Phoenix Contact
Number of Positions
5
Features
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
