Code: 641916

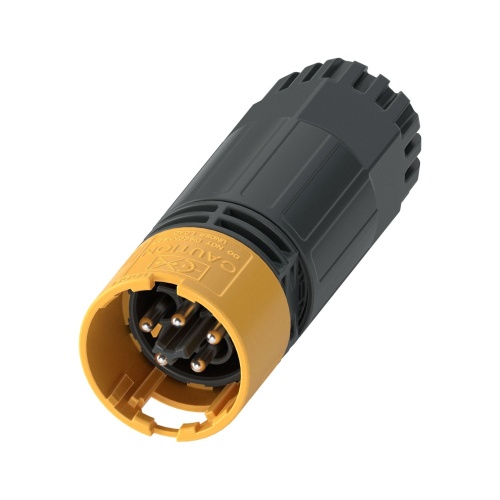

Phoenix Contact 1309419 Connector PRC 20/5-C4-FC-MS2,5 6-14
Normally In Stock
Phoenix Contact PRC 20/5-C4-FC-MS2,5 6-14 Installation connector - 5 Positions, Black - 1309419
Condition: New
Usually ships Same Day or Next Day$20.92
Sale Price
$17.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1309419 The connector has a range of articles specified as PRC 20 and is colored black. It features five positions for conductors, with minimum conductor cross-sections ranging from 0.5 mm² to maximum values up to 2.5 mm². The rated voltage and current are 400 V and 20 A respectively. Connection methods include screw connections with pin-style contacts, allowing for manual or tool-assisted release options. The connector's scope is limited to direct current (DC) applications.
Specifications
Connector Color
Black
Manufacturer
Phoenix Contact
Component
Installation Connector
Number of Positions
5
Features
More space on the device front with current transmission up to 20 A in a minimum amount of space
Duo-Unlock technology for greater flexibility during installation and maintenance
Reliable use under extreme ambient conditions with high degrees of protection and impact resistance
Simple handling with proven crimp or screw connection technology

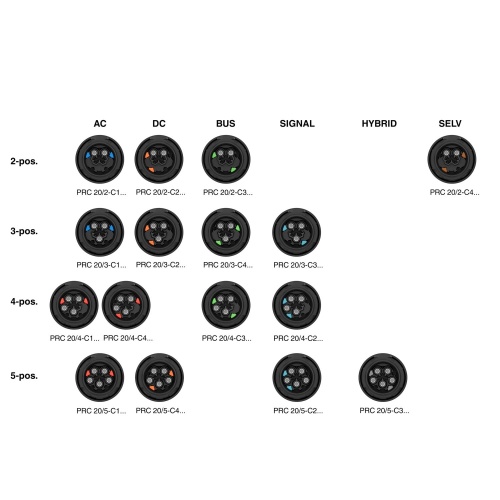

Mechanical and color coding for quick and error-free startup
