Code: 641909

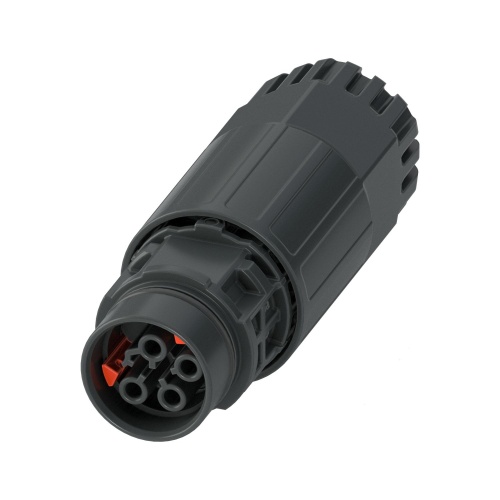

Phoenix Contact 1309416 Coupler connector PRC 20/4-C4-FC-FS2,5 6-14
Normally In Stock
Phoenix Contact PRC 20/4-C4-FC-FS2,5 6-14 Installation connector - 4 Positions, Black - 1309416
Condition: New
Usually ships Same Day or Next Day$19.68
Sale Price
$16.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1309416 A coupler connector with the specified dimensions and ratings is available in black color and has four positions for conductors. The cross-sectional area of the conductors can range from 0.5 mm² to 2.5 mm², supporting a maximum rated voltage of 400 V and a maximum rated current of 20 A. This connector features a screw connection method, a socket-style contact, and allows for easy release by either using a tool or by hand. The coupler is suitable for AC applications.
Specifications
Connector Color
Black
Manufacturer
Phoenix Contact
Component
Installation Connector
Number of Positions
4
Features
More space on the device front with current transmission up to 20 A in a minimum amount of space
Duo-Unlock technology for greater flexibility during installation and maintenance
Reliable use under extreme ambient conditions with high degrees of protection and impact resistance
Simple handling with proven crimp or screw connection technology
Mechanical and color coding for quick and error-free startup
