Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 641892
Phoenix Contact 1313290 Connector PRC 20/2-C2-FC-MS2,5 6-14
Normally In Stock

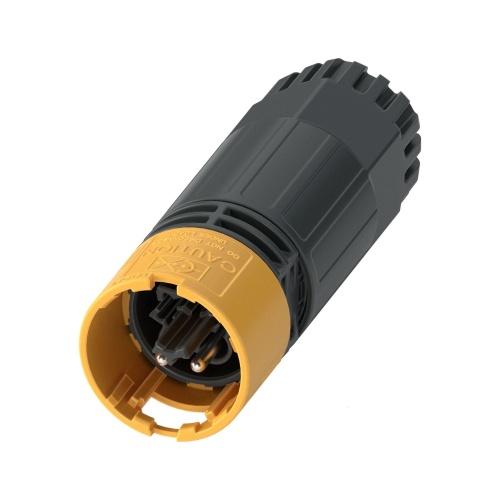

Phoenix Contact PRC 20/2-C2-FC-MS2,5 6-14 Installation connector - 2 Positions, Black - 1313290
Condition: New
Usually ships Same Day or Next Day$14.75
Sale Price
$12.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1313290 The connector has a range of articles PRC 20 and is black in color, featuring two positions to accommodate different conductor sizes between 0.5 mm² to 2.5 mm², with rated voltages of 400 V and currents of up to 20 A, secured via screw connection with pin-type contacts that can be set for release using either a tool or by hand, specifically designed for DC applications.
Specifications
Connector Color
Black
Manufacturer
Phoenix Contact
Component
Installation Connector
Number of Positions
2
Features
More space on the device front with current transmission up to 20 A in a minimum amount of space
Duo-Unlock technology for greater flexibility during installation and maintenance
Reliable use under extreme ambient conditions with high degrees of protection and impact resistance
Simple handling with proven crimp or screw connection technology
Mechanical and color coding for quick and error-free startup
